SG-500 VPN Security Gateway User’s Manual

- 142 -

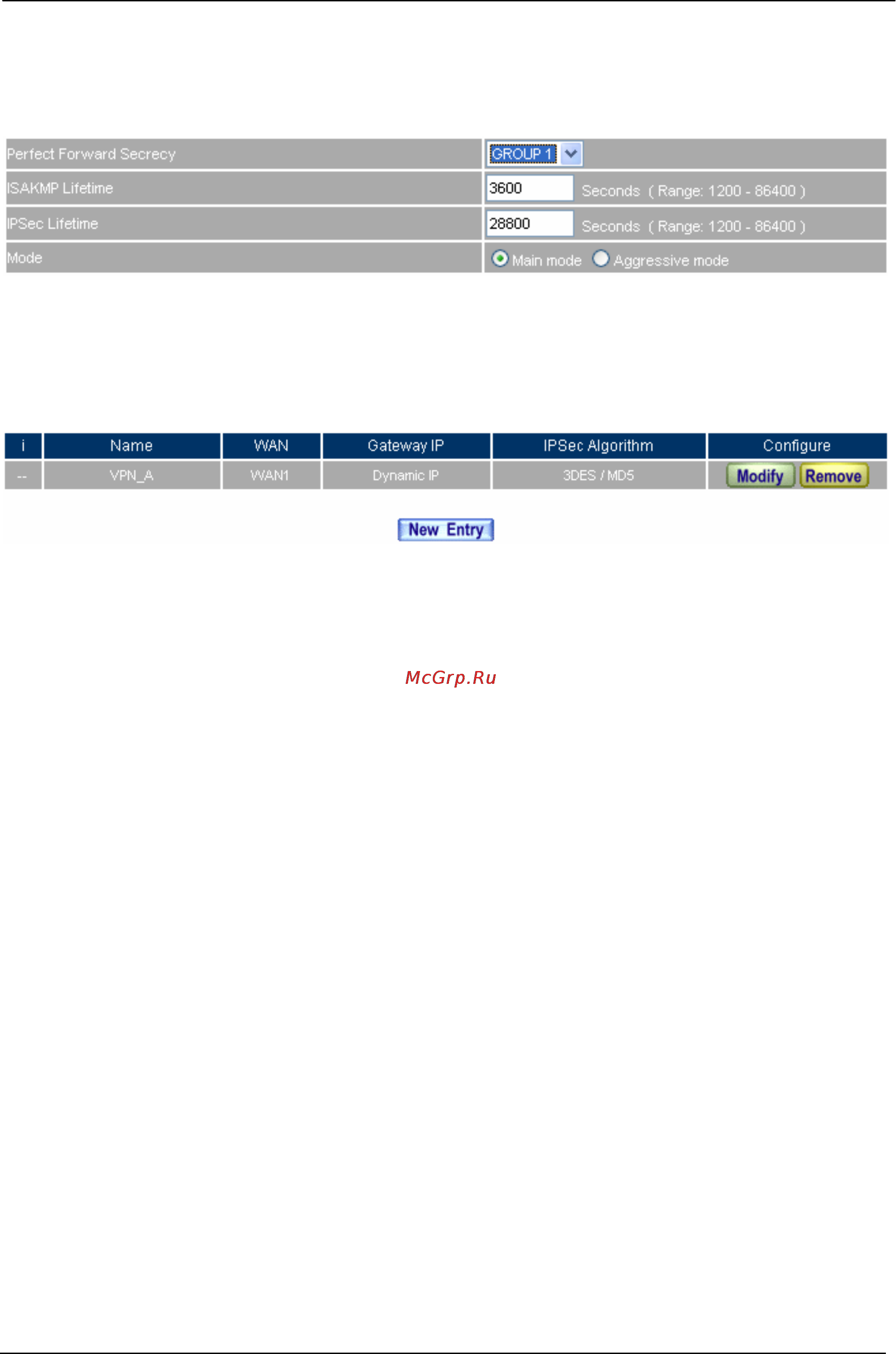

STEP 7 . In Perfect Forward Secrecy (NO-PFS/ GROUP 1, 2, 5), select GROUP 1. In ISAKMP Lifetime,

enter 3600 seconds. In IPSec Lifetime, enter 28800 seconds. In Mode, select main mode.

The IPSec Perfect Forward Secrecy setting

STEP 8 . Complete the IPSec Autokey setting.

Complete the IPSec Autokey setting
