SG-500 VPN Security Gateway User’s Manual

- 144 -

STEP 10 . In Policy Æ Outgoing, add the following settings：

Tunnel, select IPSec_VPN_Tunnel.

Click OK.

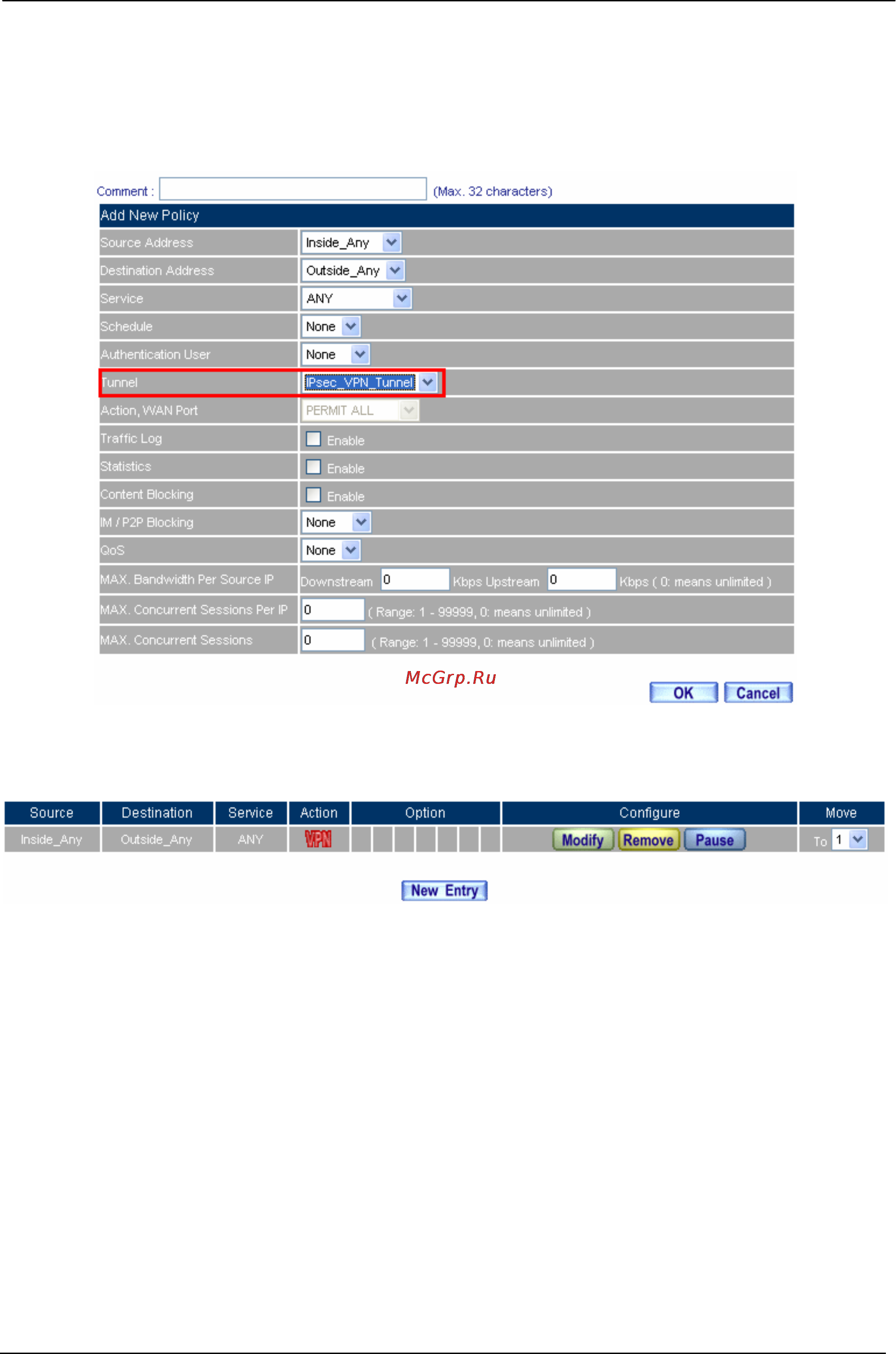

Set the outgoing policy setting included the VPN Tunnel

Complete the outgoing policy setting included the VPN Tunnel
