SG-500 VPN Security Gateway User’s Manual

- 154 -

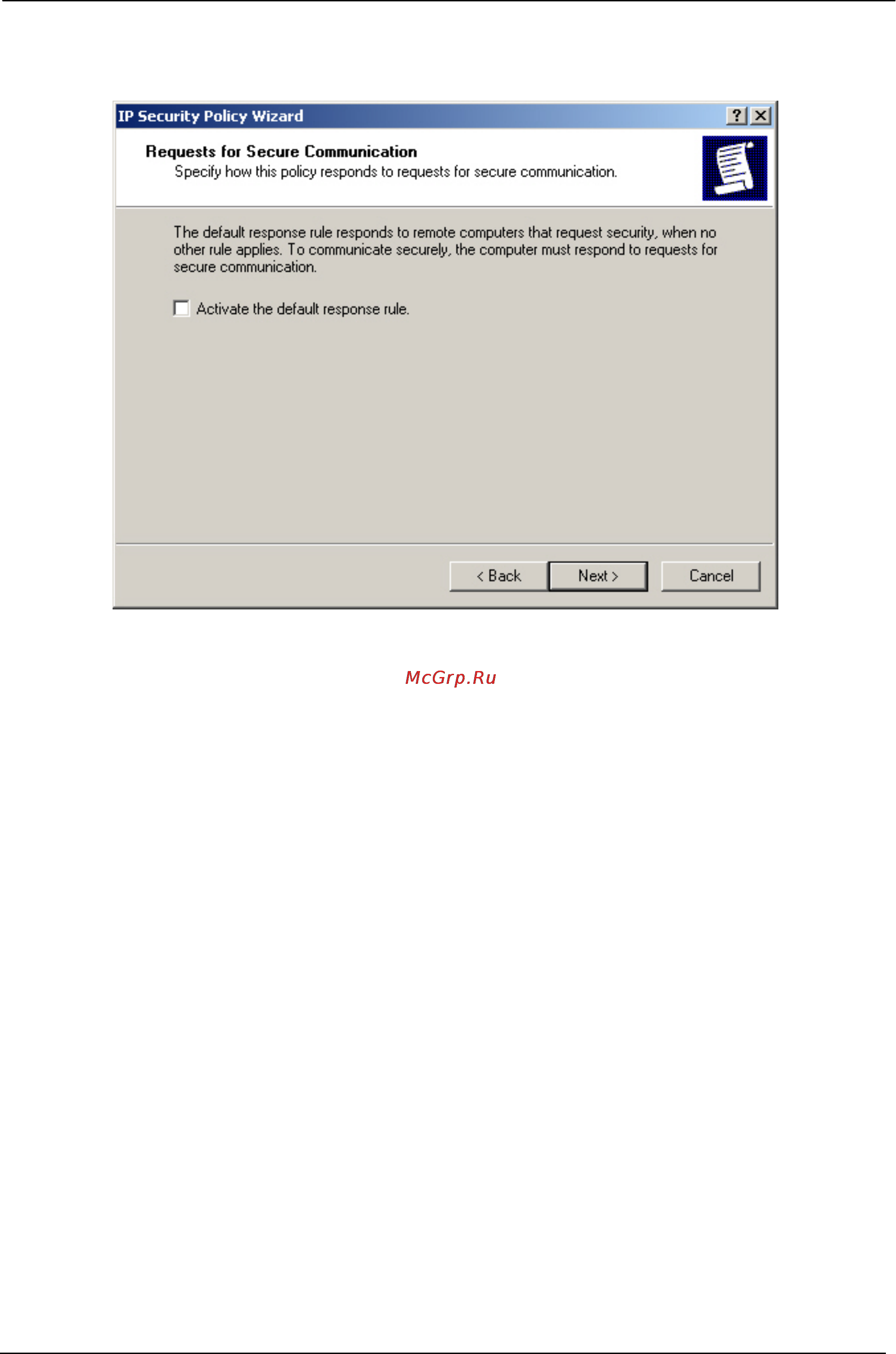

STEP 21 . Disable to Activate the default response rule, and click Next.

Disable to activate the default response rule
