SG-500 VPN Security Gateway User’s Manual

- 156 -

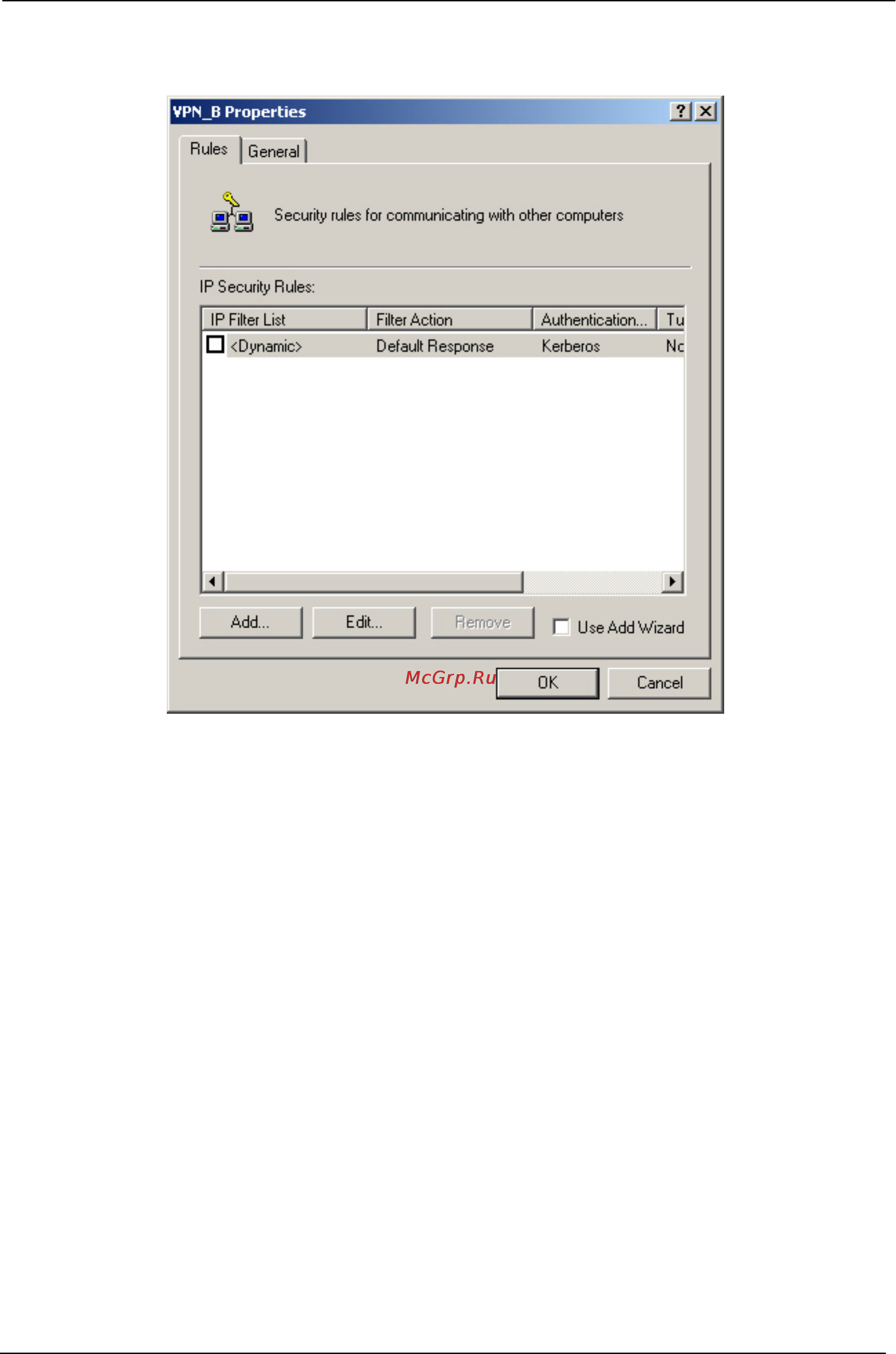

STEP 23 . In VPN_B Properties, do not select Use Add Wizard, and click Add.

VPN_B Properties
