SG-500 VPN Security Gateway User’s Manual

- 167 -

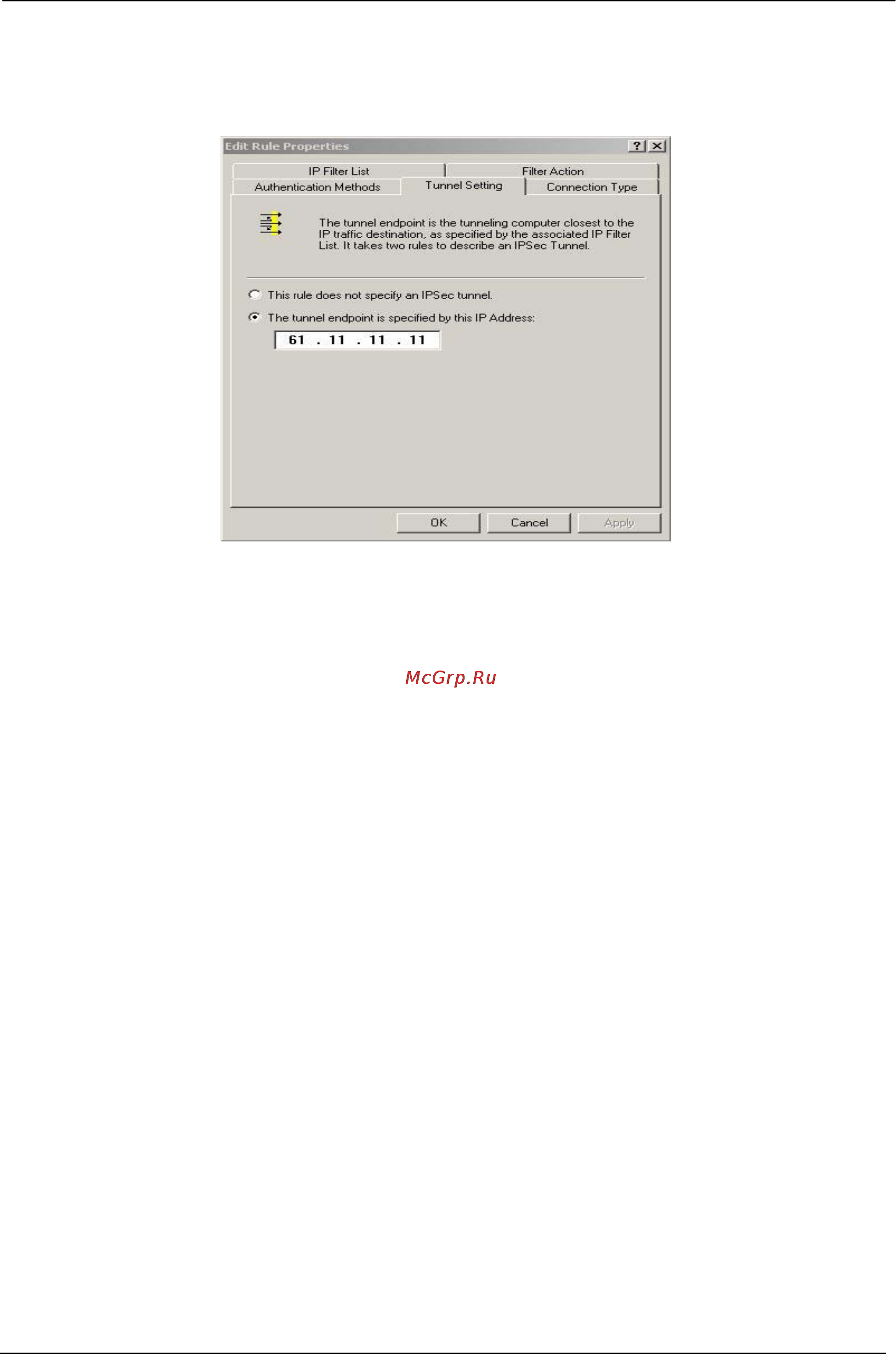

STEP 34 . In New Rule Properties Æ Tunnel Setting, select The tunnel endpoint is specified by this IP

Address. Enter A Company’s WAN IP address 61.11.11.11.

Tunnel setting
