SG-500 VPN Security Gateway User’s Manual

- 175 -

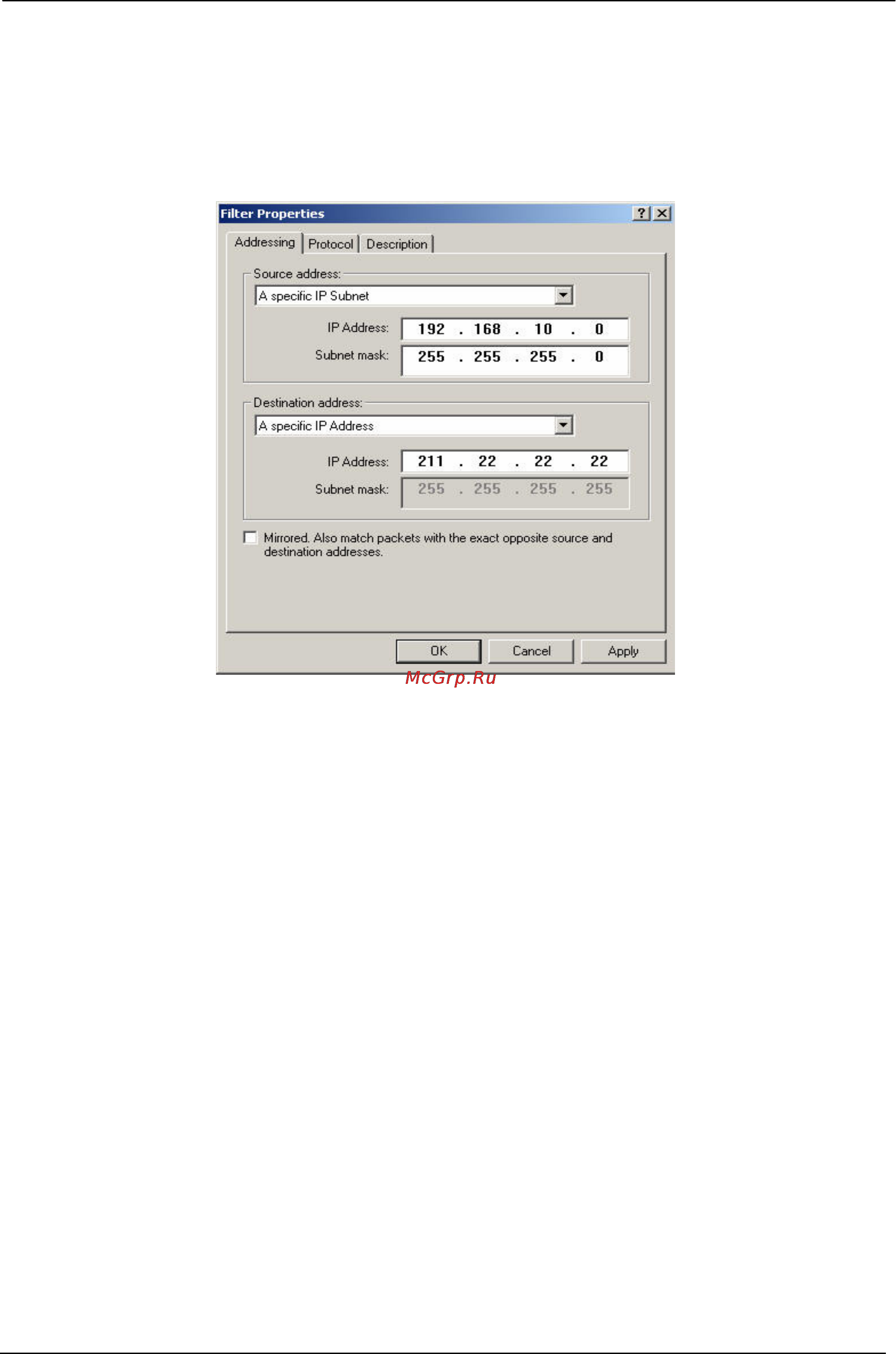

STEP 42 . In Filter PropertiesÆ Source address, select A specific IP Subnet, enter A Company‘s LAN IP

Address 192.168.10.0, subnet mask 255.255.255.0. In Destination address, select A specific IP

Address, enter B Company‘s WAN IP Address 211.22.22.22, subnet mask 255.255.255.255. Do not

select Mirrored, Also match packets with the exact opposite source and destination addresses.

Filter Properties
