SG-500 VPN Security Gateway User’s Manual

- 177 -

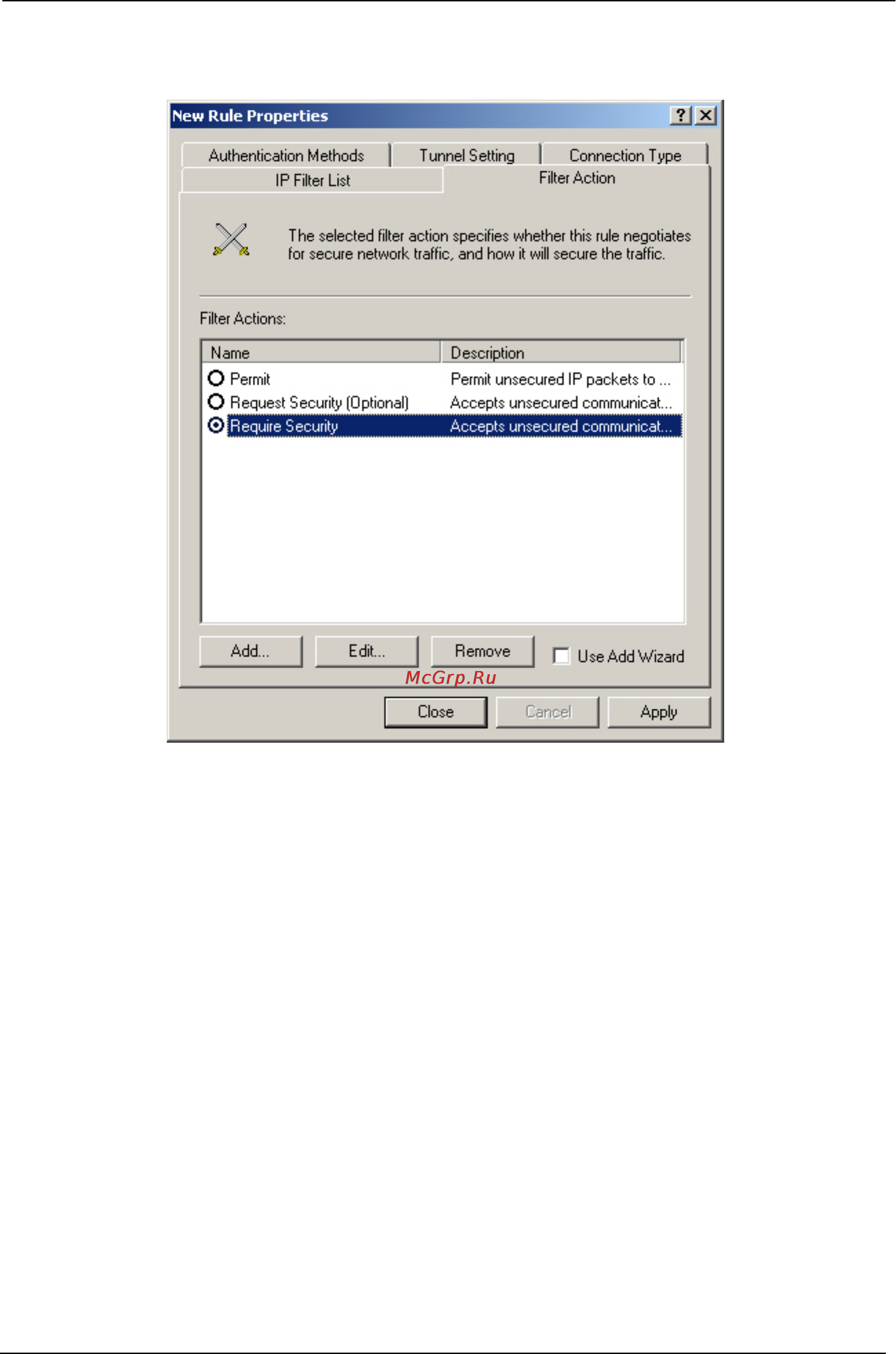

STEP 44 . In New Rule Properties Æ Filter Action, select Required Security, then click Edit.

Filter Action
