SG-500 VPN Security Gateway User’s Manual

- 179 -

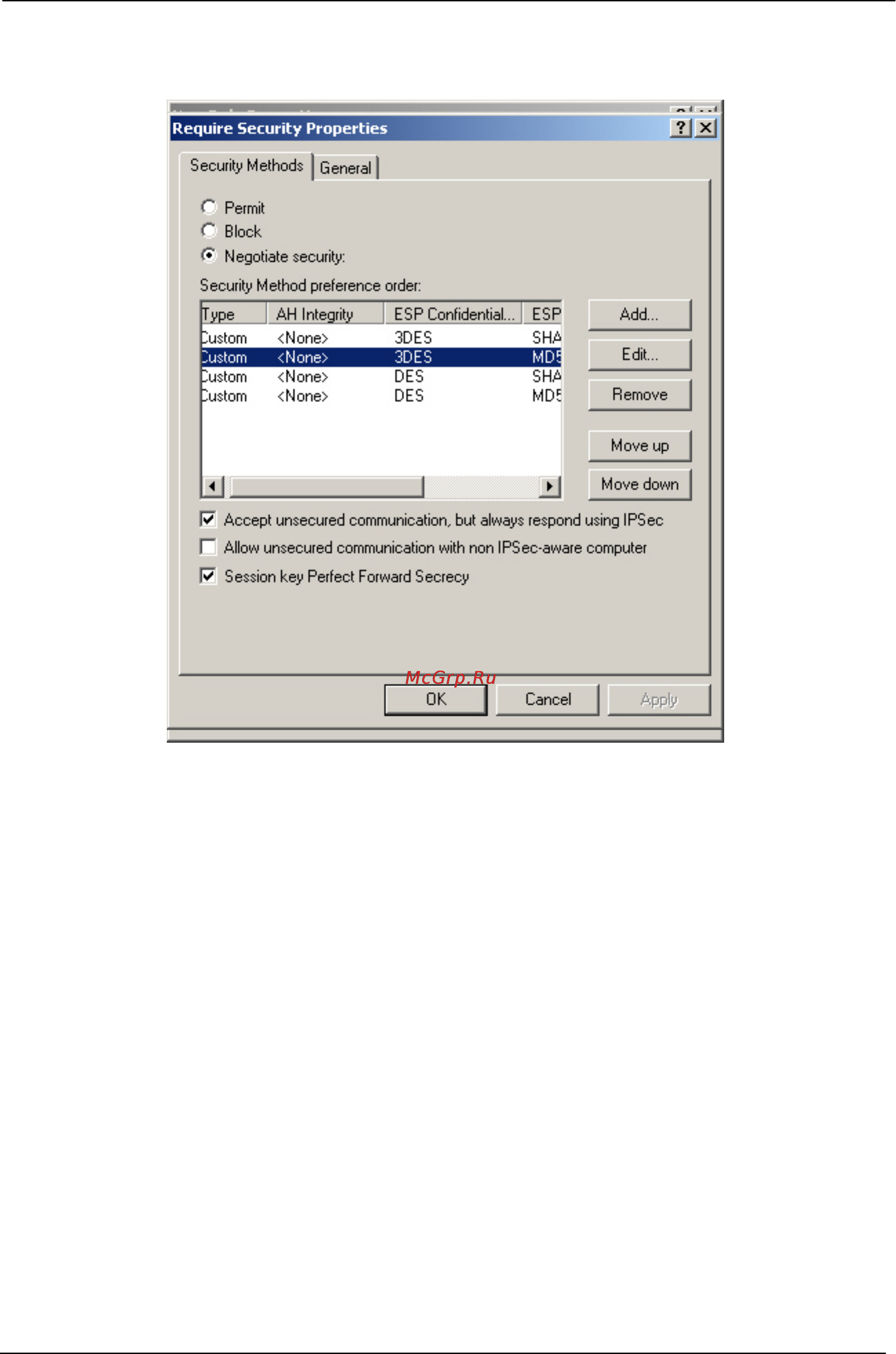

STEP 46 . Select Custom / None / 3DES / MD5 Security Method. Click Edit.

Set the Security Method
