SG-500 VPN Security Gateway User’s Manual

- 188 -

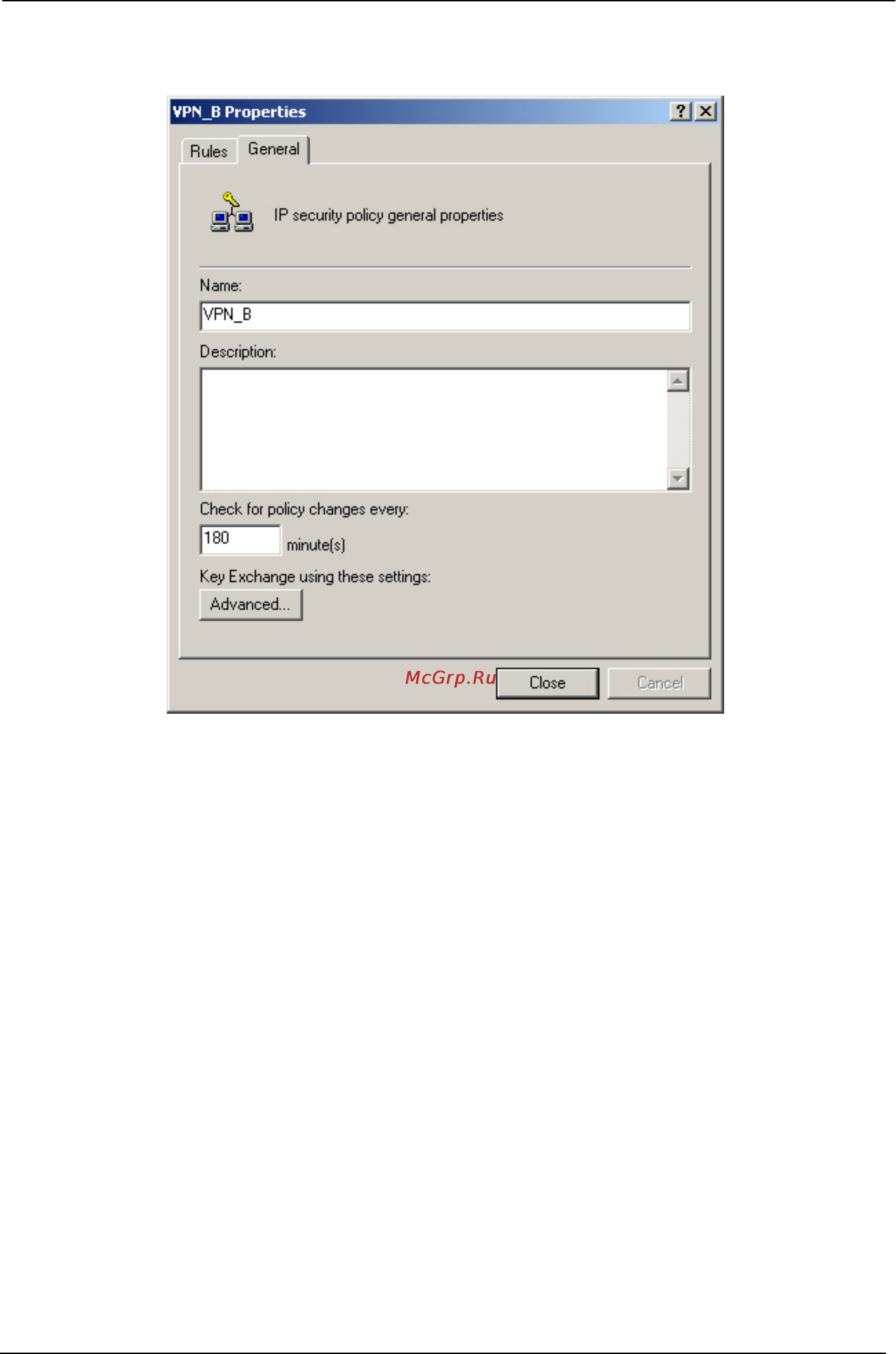

STEP 55 . In VPN_B Properties Æ General, click Advanced.

The VPN_B General setting
