SG-500 VPN Security Gateway User’s Manual

- 190 -

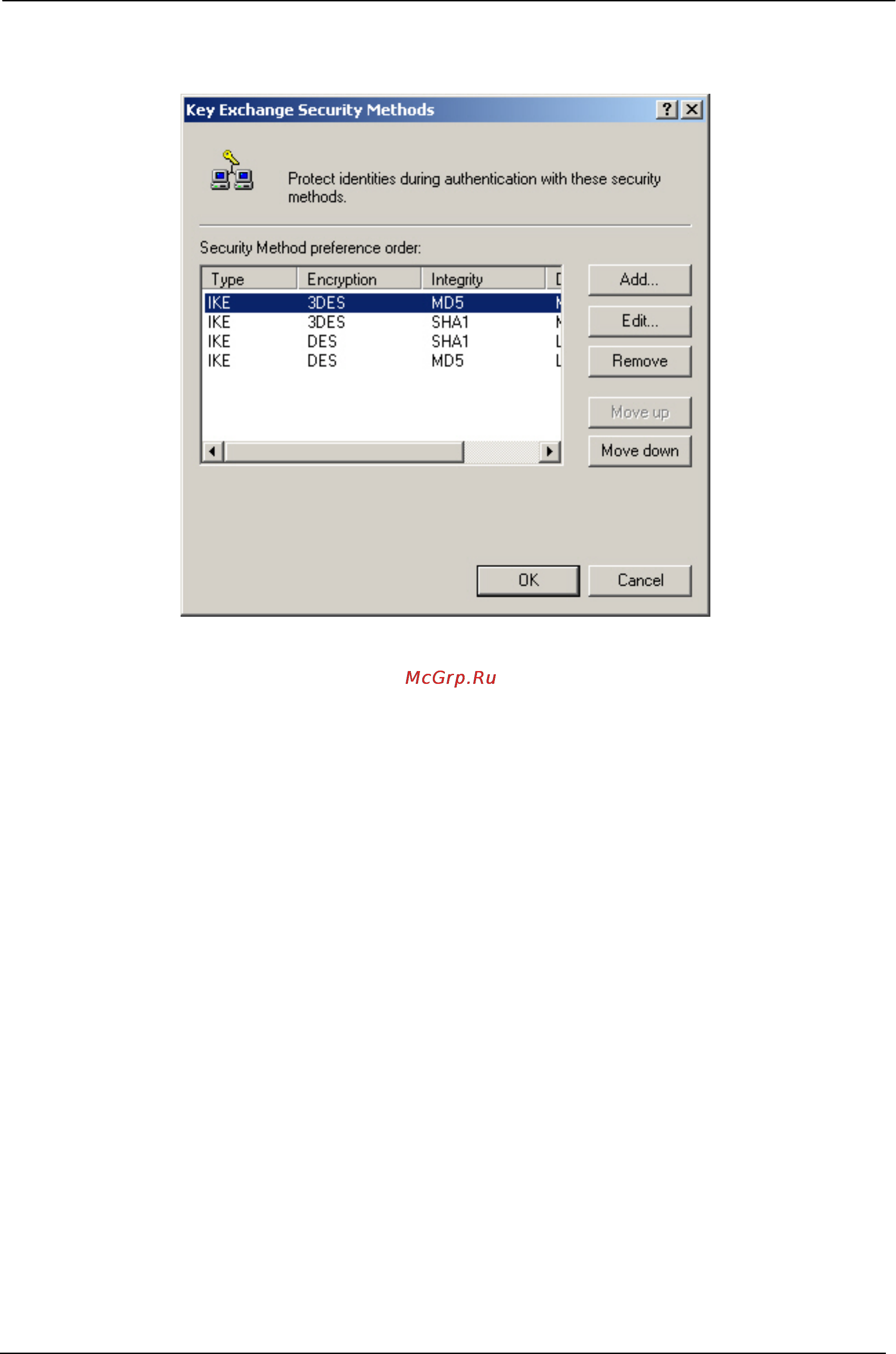

STEP 57 . Click Move up or Move down to arrange IKE / 3DES / MD5 / to the Top, and click OK.

To arrange the Security Methods
