SG-500 VPN Security Gateway User’s Manual
- 199 -

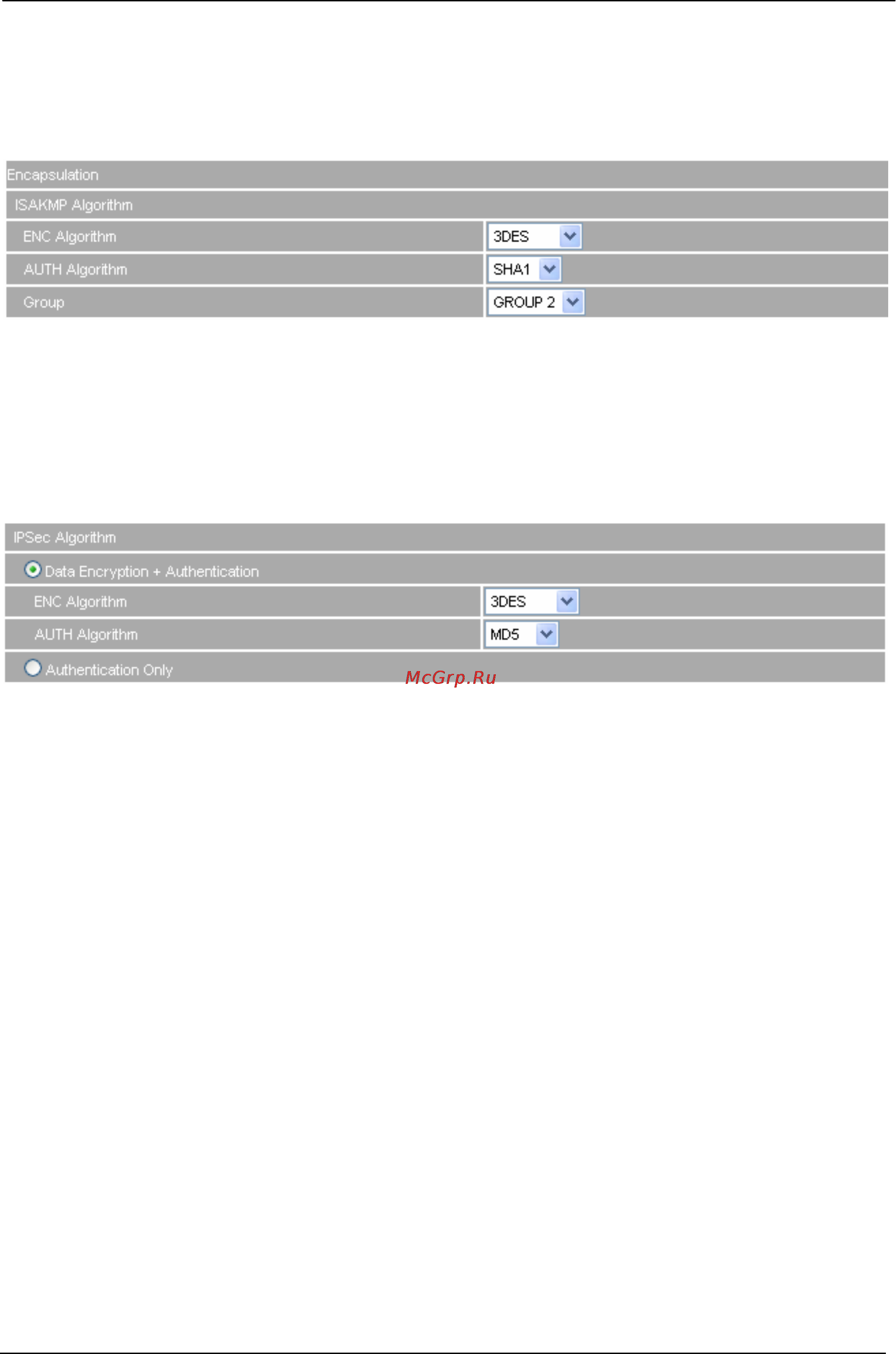

STEP 5 . In Encapsulation, select ISAKMP Algorithm, to select the needed algorithm.In ENC Algorithm
(3DES/DES/AES), select 3DES. In AUTH Algorithm (MD5/SHA1), select SHA1. In Group (GROUP 1, 2,
5), select Group 2, the both sides need to choose the same group.
The IPSec Encapsulation setting
STEP 6 . In IPSec Algorithm, select Data Encryption + Authentication or Authentication Only. In ENC
Algorithm (3DES/DES/AES/NULL) select 3DES. In AUTH Algorithm (MD5/SHA1), select MD5. To
assure the Authentication Method.
The IPSec Algorithm setting
