SG-500 VPN Security Gateway User’s Manual
- 201 -

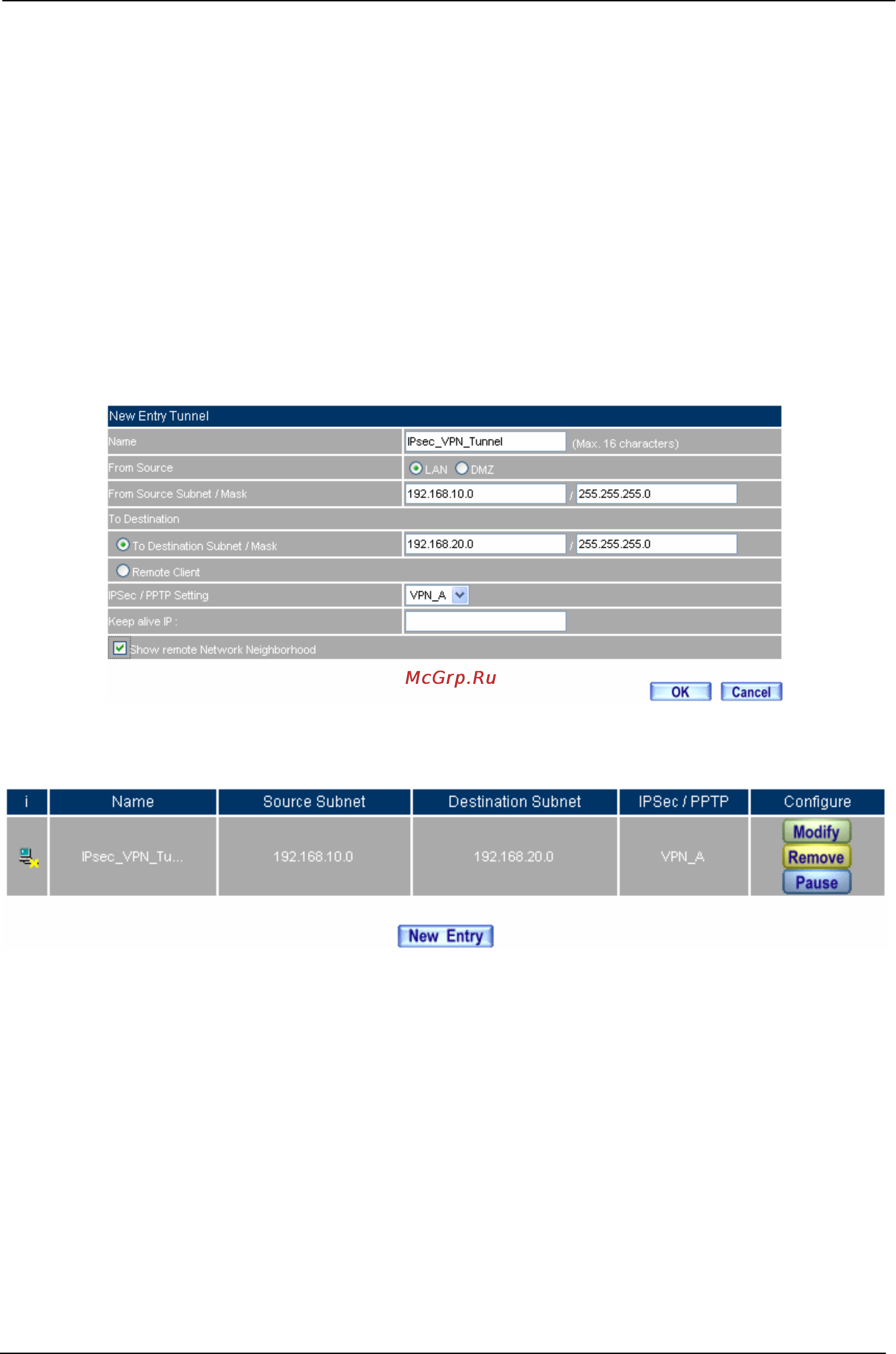

STEP 10 . In VPN Æ Tunnel add the following settings：
Name, enter the Tunnel name.
From Source, select LAN.
From Source Subnet / Mask, enter the LAN address (A Company) 192.168.10.0 and Mask
255.255.255.0.
To Destination, select To Destination Subnet / Mask.
Enter the destination LAN IP address (B Company) 192.168.20.0 and mask 255.255.255.0.
IPSec Setting, select VPN_A.
Select show remote Network Neighborhood.
Click OK.
Add the VPN Tunnel setting
Complete the VPN Tunnel setting
