SG-500 VPN Security Gateway User’s Manual

- 212 -

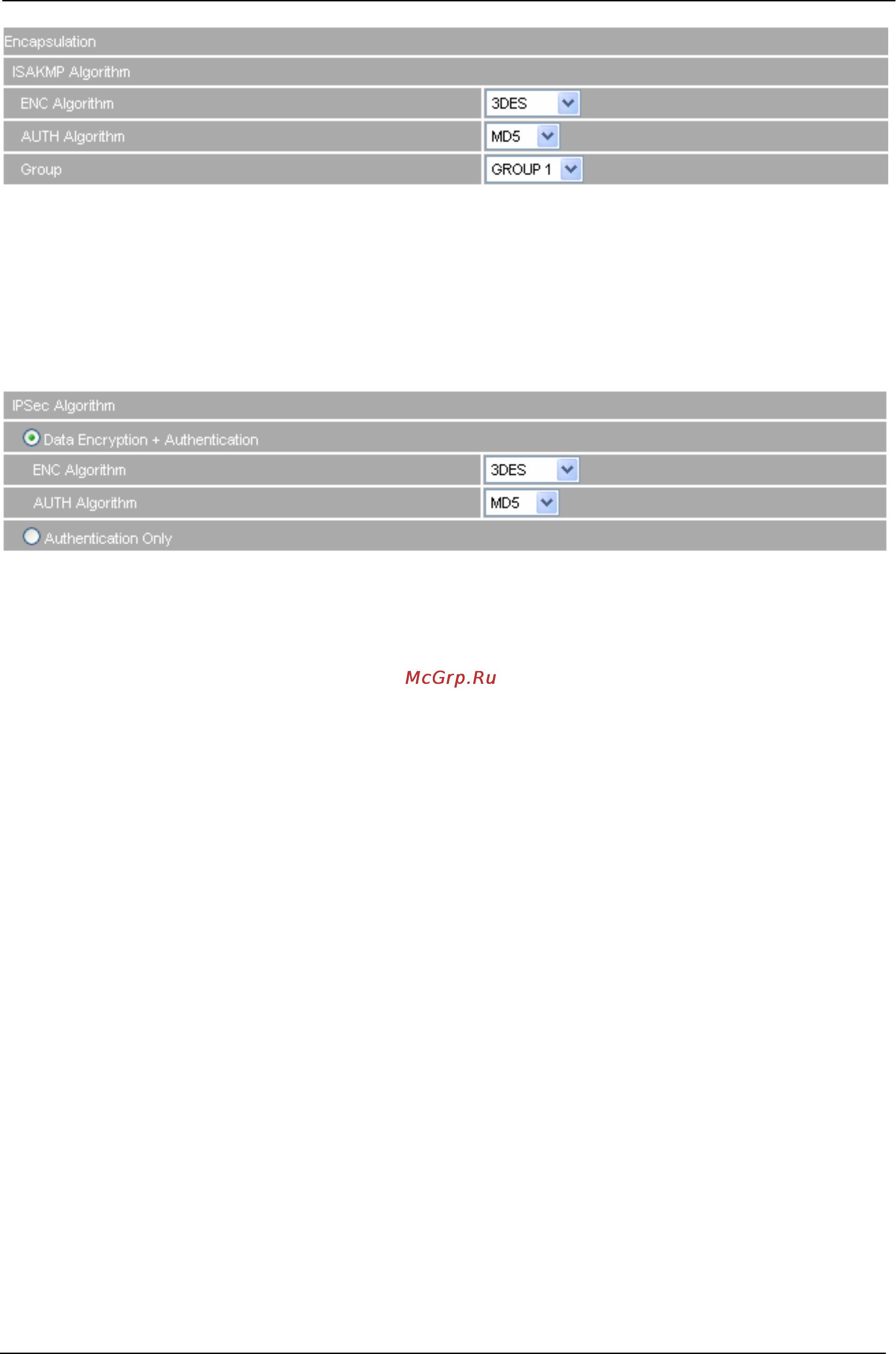

The IPSec Encapsulation setting

STEP 6 . In IPSec Algorithm, select Data Encryption + Authentication or Authentication Only. In ENC

Algorithm (3DES/DES/AES/NULL), select 3DES. In AUTH Algorithm (MD5/SHA1), select MD5, to

assure the data authentication method.

The IPSec Algorithm setting
