SG-500 VPN Security Gateway User’s Manual

- 216 -

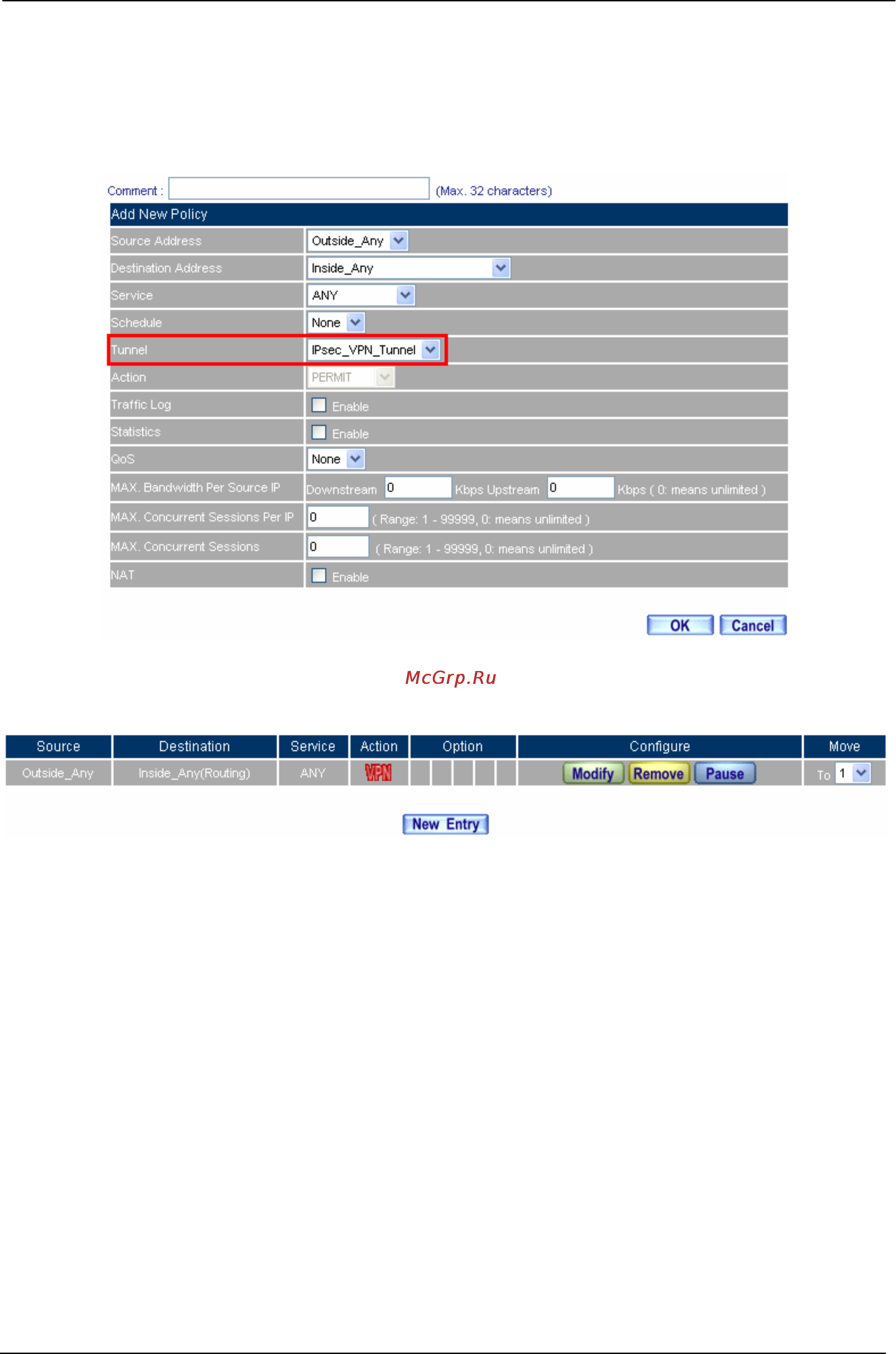

STEP 12 . In Policy Æ Incoming , add the following settings：

 Tunnel, select IPSec_VPN_Tunnel.

 Click OK.

Set the incoming policy setting included the VPN Tunnel

Complete the incoming policy setting included the VPN Tunnel
