SG-500 VPN Security Gateway User’s Manual

- 246 -

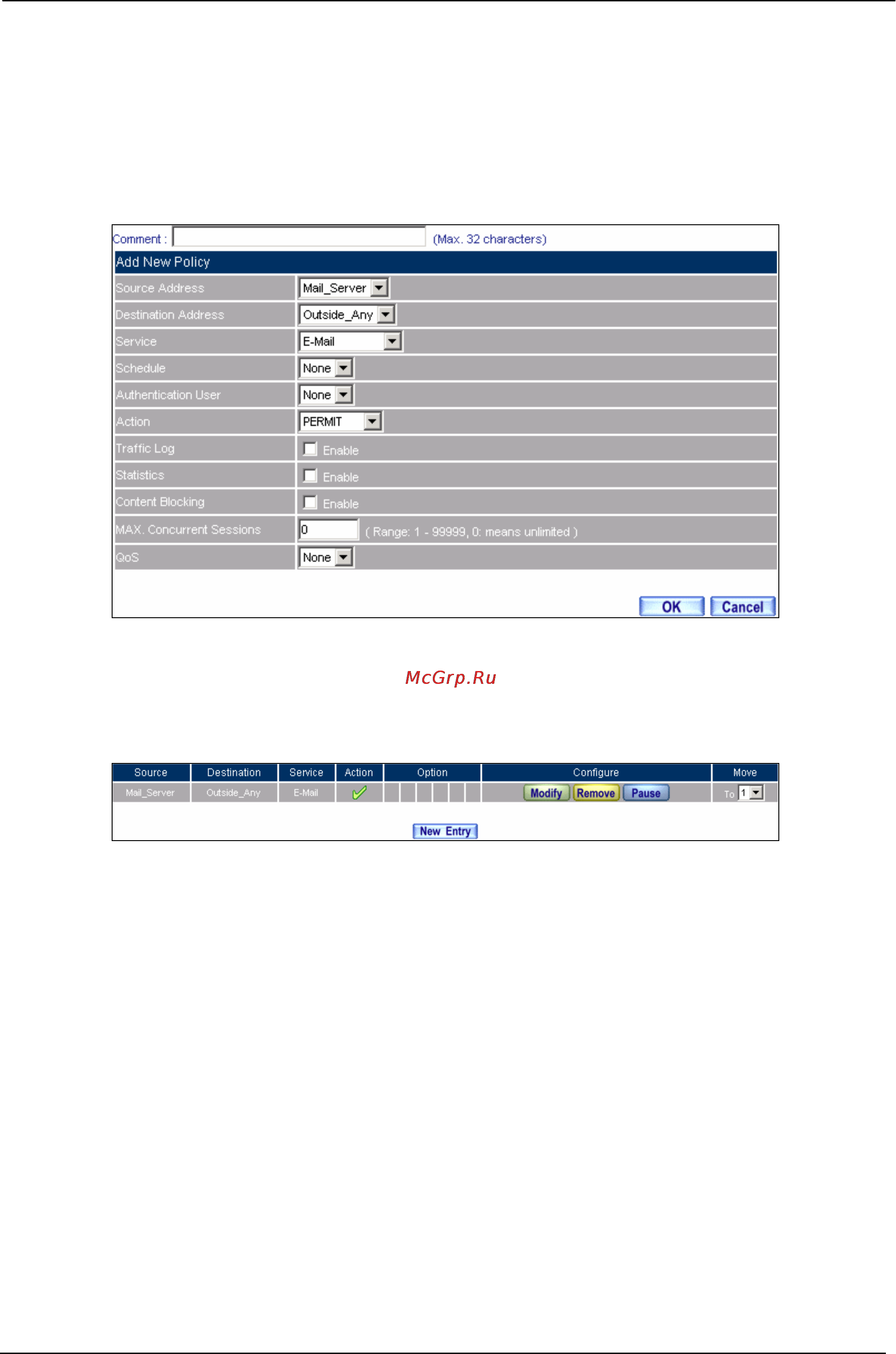

STEP 8﹒Add the following setting in DMZ to WAN Policy:

 Click New Entry

 Source Address: Select Mail_Server

 Service: Select E-mail

 Click OK

Setting the Policy of Mail Service by DMZ to WAN

STEP 9﹒Complete the policy access to mail service by DMZ to WAN.

Complete the Policy access to Mail Service by DMZ to WAN
