SG-500 VPN Security Gateway User’s Manual
- 253 -

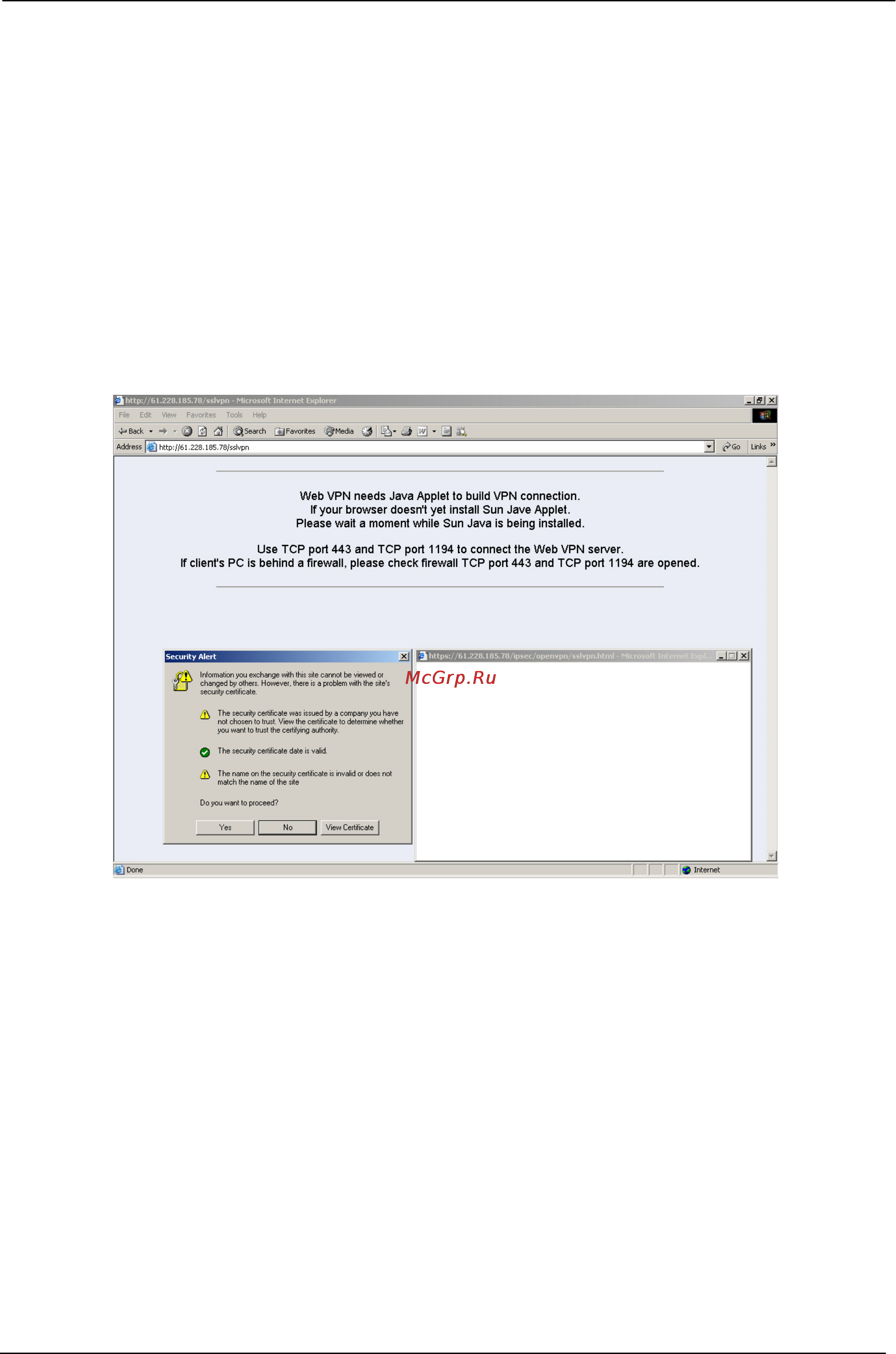

STEP 5. Enter the following setting in Browser:
Address: Enter http://61.11.11.11/sslvpn or http://61.11.11.11/webvpn. (It means
to add “sslvpn” or “webvpn” character string to SG-500’s Web UI login IP.)。
Click Enter.
Click Yes in Security Alert window.
Click Yes in Warning - Security window.
Click Yes in Warning - HTTPS window.
Click Yes in Warning - Security window.
Enter User Name is john and Password is 123456789 in Authentication window.
Click OK.
Login SSL VPN Connection Web UI
