SG-500 VPN Security Gateway User’s Manual

- 259 -

If client PC not install SUN JAVA Runtime Environment, when login SSL VPN connection Web UI, it

will download and install this software automatically.

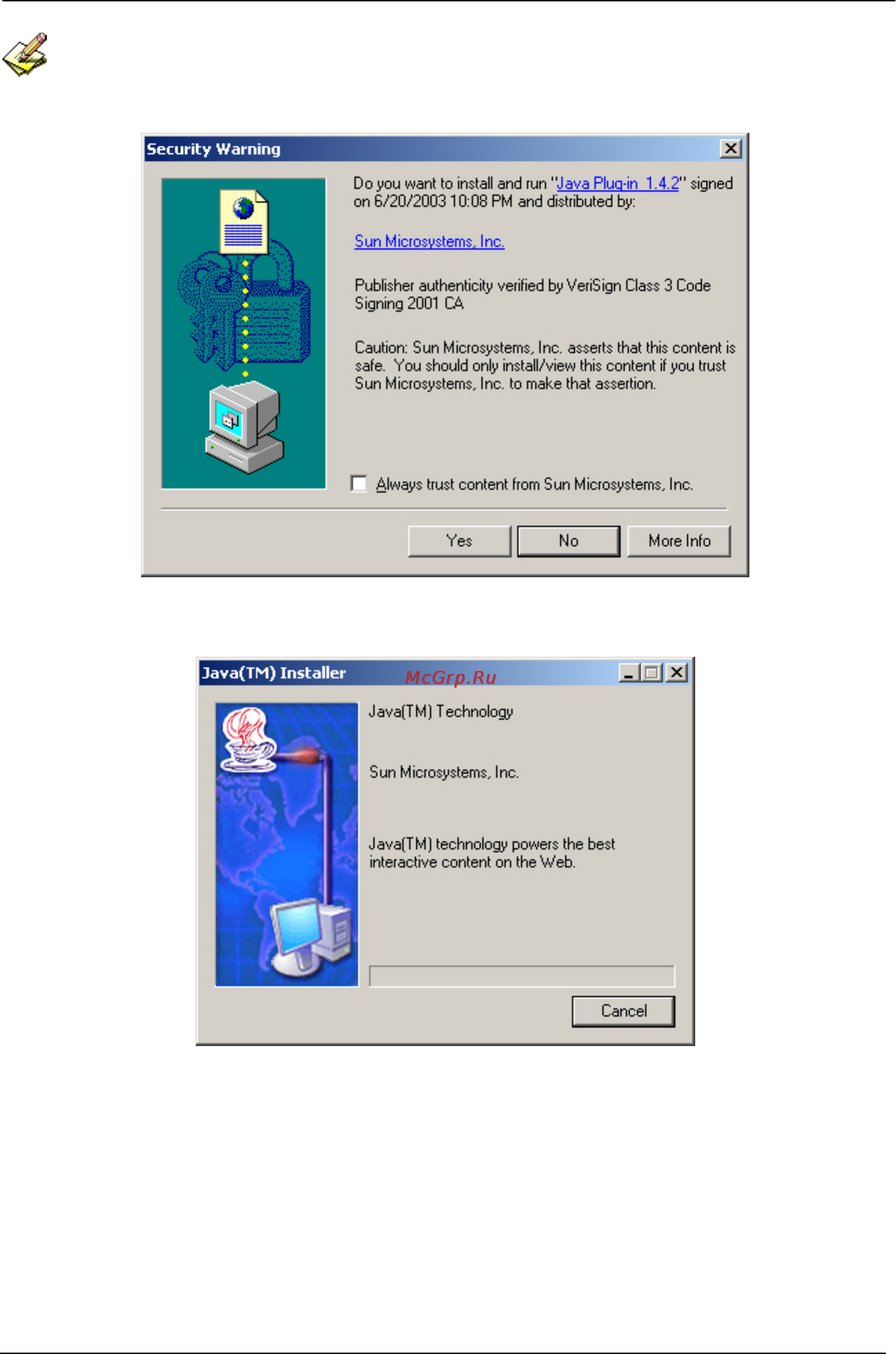

Install Java Runtime Environment Plug-in CA Authenticity

Installing Java Runtime Environment Plug-in
