SG-500 VPN Security Gateway User’s Manual

- 285 -

STEP 3﹒Enter Log Backup in Log, enter the following settings in Syslog Settings:

 Select Enable Syslog Messages

 Enter the IP in Syslog Host IP Address that can receive Syslog

 Enter the receive port in Syslog Host Port

 Click OK

 Complete the setting

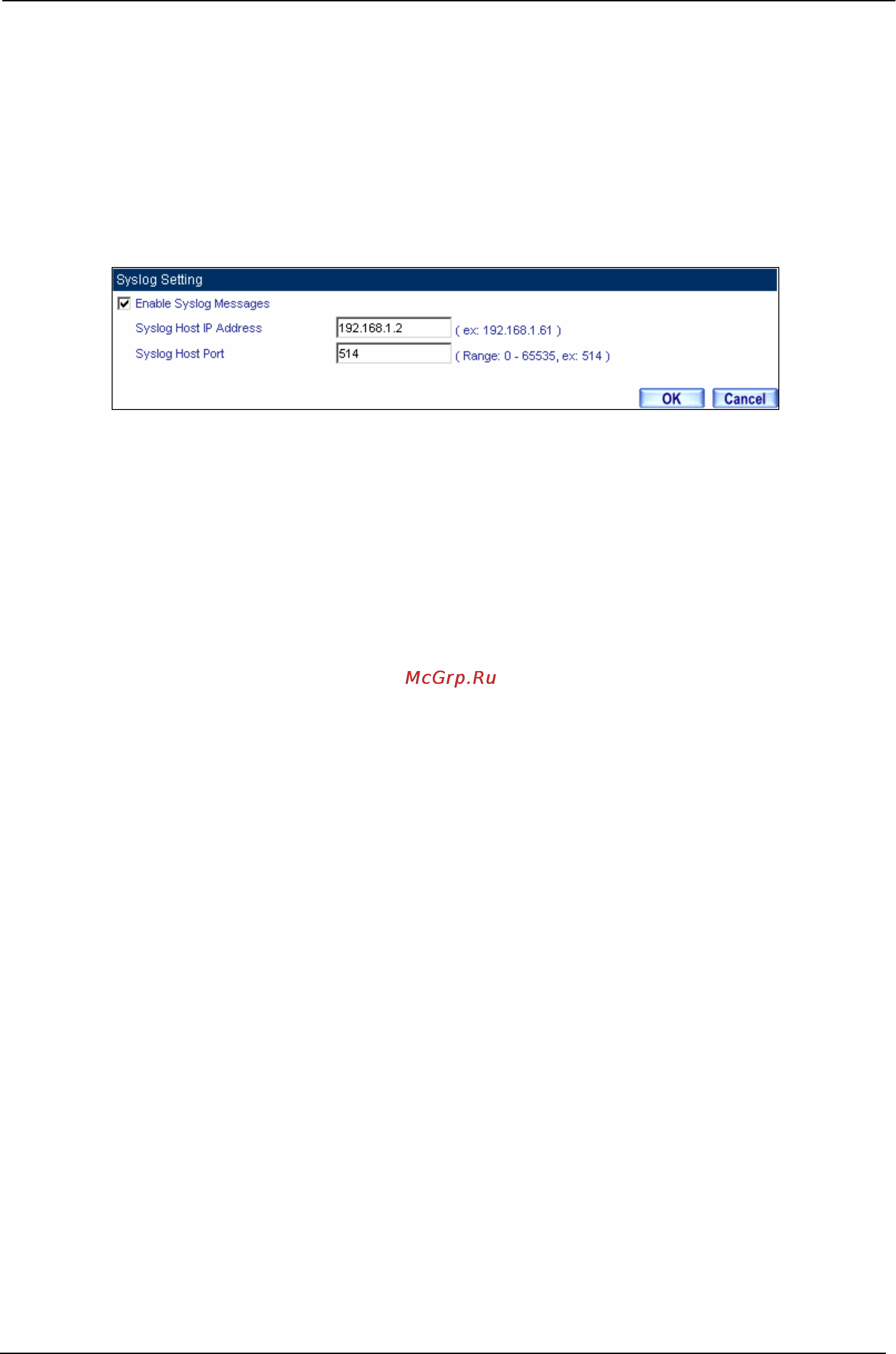

Syslog Messages Setting Web UI
