SG-500 VPN Security Gateway User’s Manual
- 299 -
STEP 2﹒Enter Inbound in Accounting Report and select Top Services to inquire the statistics
website of Send/Receive packets, Downstream/Upstream, First packet/Last
packet/Duration and the service from the WAN Server to pass the SG-500.
TOP：Select the data you want to view. It presents 10 results in one page.
：According to the downstream / upstream report of the selected TOP
numbering to draw the Protocol Distribution chart.
Pull-down menu selection
Service：The report of Communication Service when WAN users use the SG-500 to
connect to LAN service server.
Downstream：The percentage of downstream and the value of each WAN user who
uses SG-500 to LAN service server.
Upstream：The percentage of upstream and the value of each LAN service server
who uses SG-500 to WAN user.
First Packet：When the first packet is sent to the LAN Service Server, the sent time
will be recorded by the SG-500.
Last Packet：When the last packet is sent from the LAN Service Server, the sent
time will be recorded by the SG-500.
Duration：The period of time starts from the first packet to the last packet to be
recorded.
Total Traffic：The SG-500 will record the sum of time and show the percentage of
each Communication Service’s upstream / downstream to LAN service server.
Reset Counter：Click the Reset Counter button to refresh the Accounting Report.

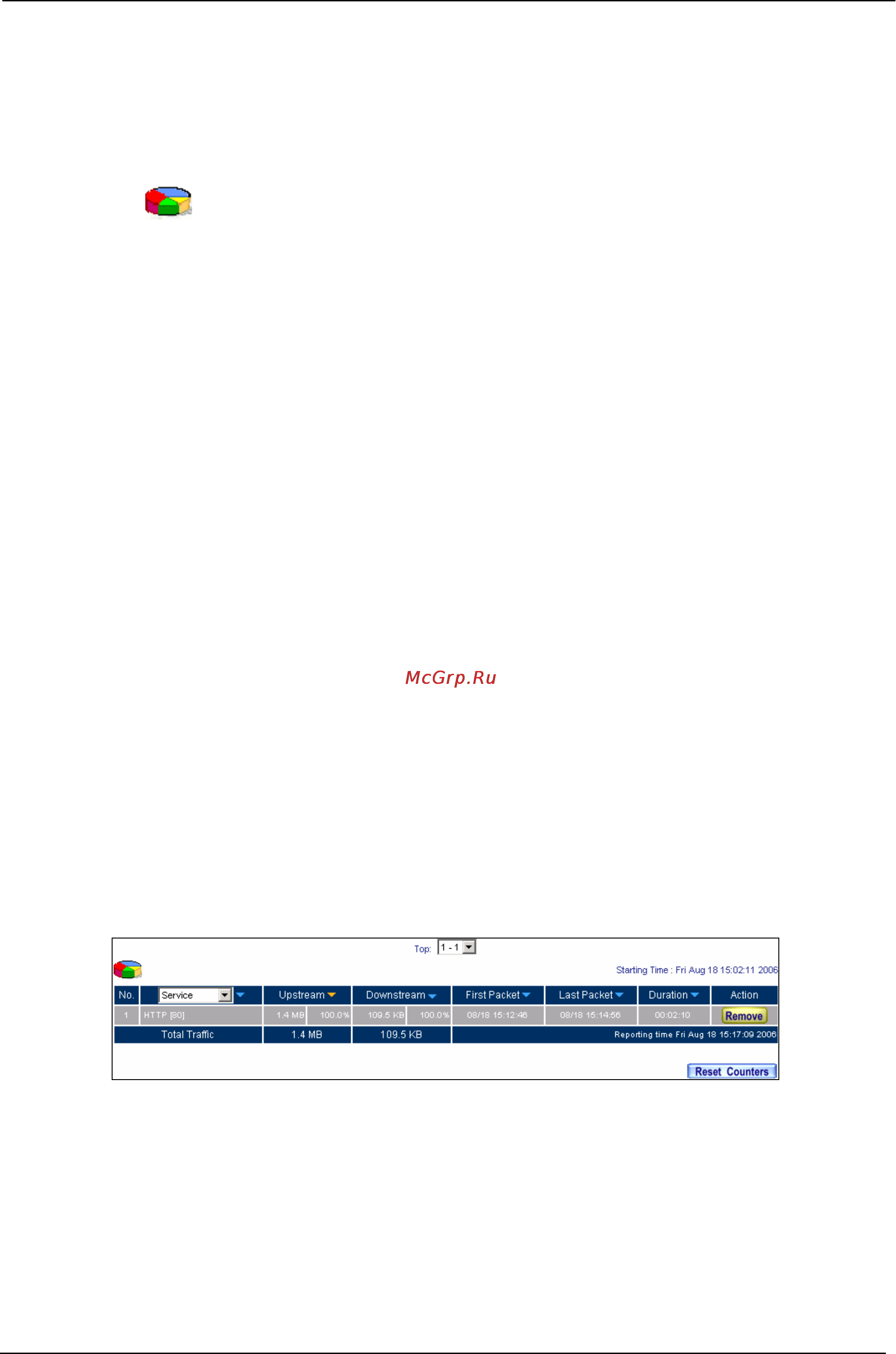

Inbound Services Statistics Report
