SG-500 VPN Security Gateway User’s Manual
- 26 -
WAN IP (10.10.10.1) connects to the Router of ISP (10.10.10.2) directly. The IP address provided
by ISP is 162.172.50.0/24
Add the following settings in Multiple Subnet of System function:
Click on New Entry
Alias IP of LAN Interface： Enter 162.172.50.1
Netmask：Enter 255.255.255.0
WAN：Enter Interface IP: 10.10.10.1, and choose Routing in Forwarding Mode
Click OK
Complete Adding Multiple Subnet

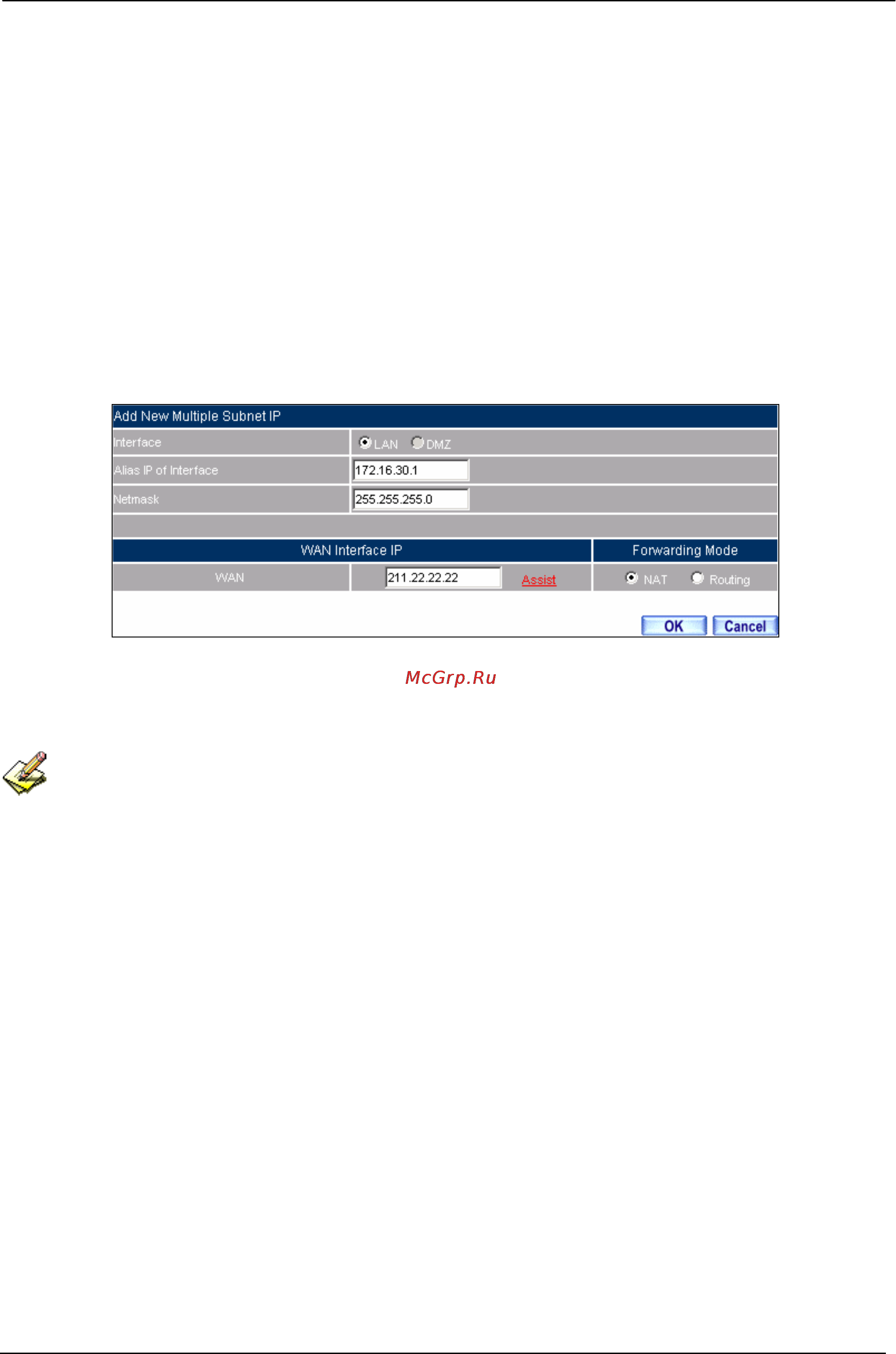

Multiple Subnet Web UI Setting
After setting, if LAN IP of SG-500 is 162.172.50.xx, it uses Routing Mode (Internet Server can see
your IP 162.172.50.xx directly)
