SG-500 VPN Security Gateway User’s Manual

- 306 -

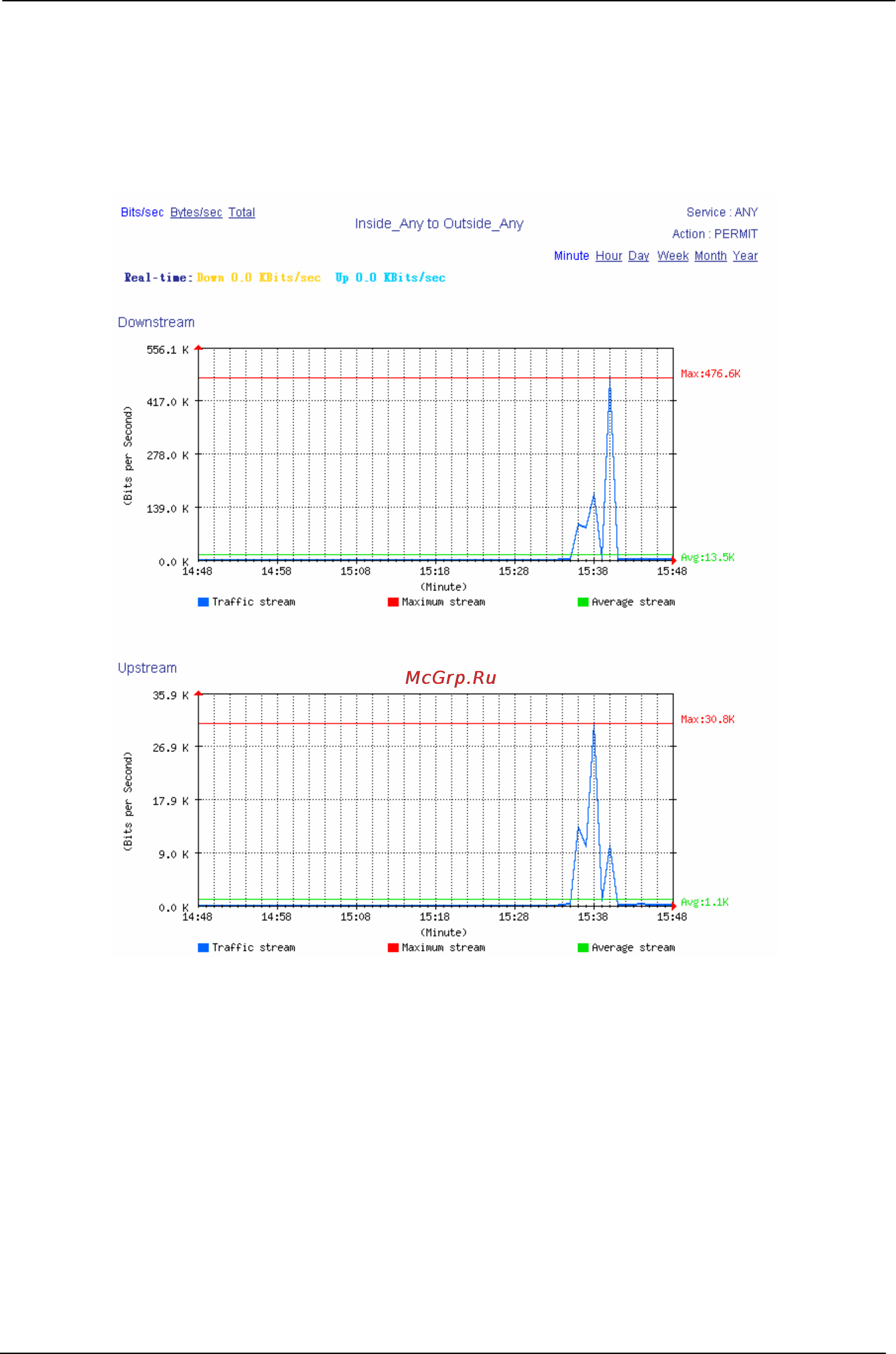

STEP 3﹒Statistics Chart

 Y-Coordinate：Network Traffic（Kbytes/Sec）

 X-Coordinate：Time（Hour/Minute/Day）

Policy Statistics
