SG-500 VPN Security Gateway User’s Manual

- 29 -

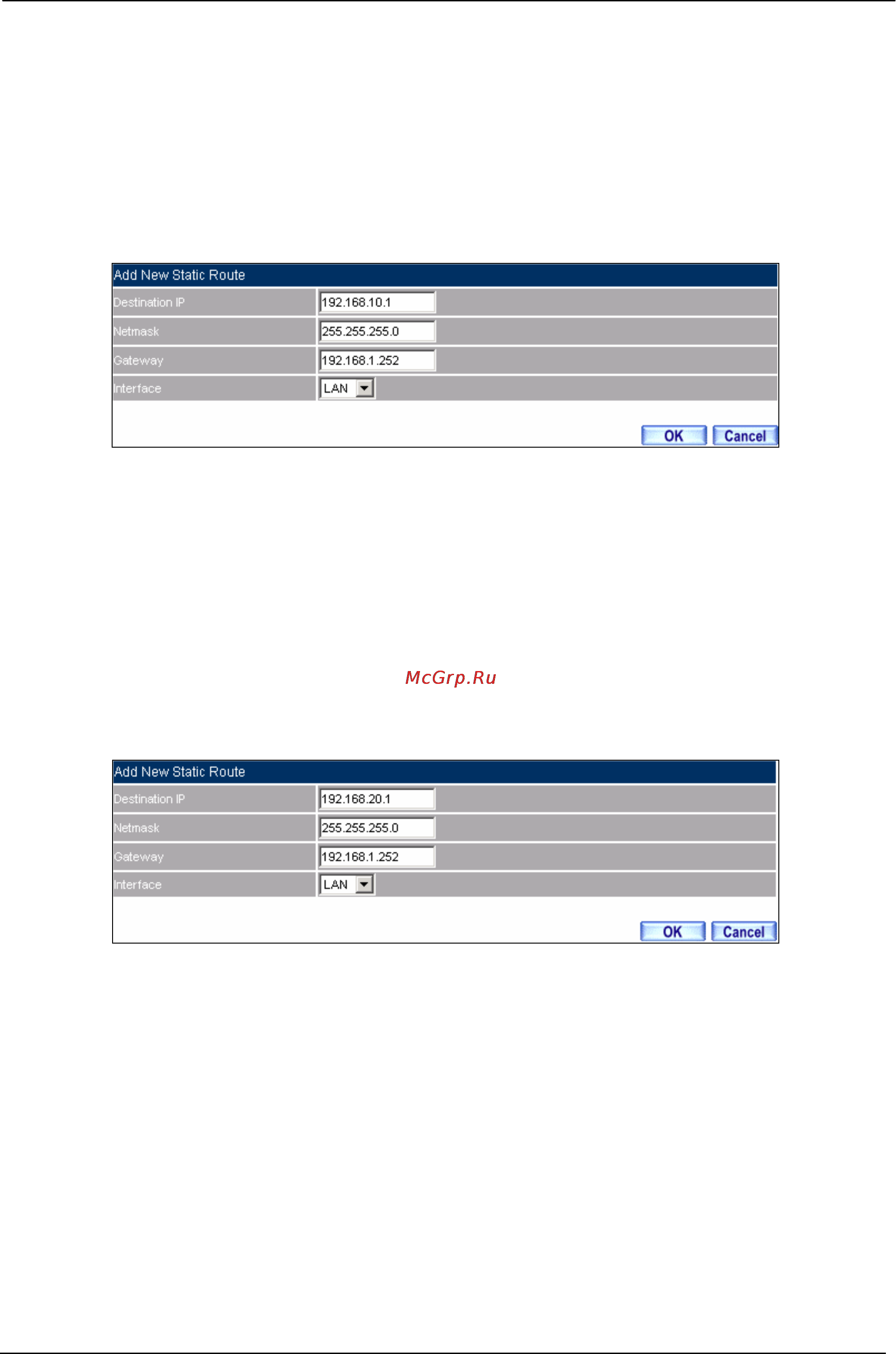

STEP 1﹒Enter the following settings in Route Table in System function:

 Destination IP: Enter 192.168.10.1

 Netmask: Enter 255.255.255.0。

 Gateway: Enter 192.168.1.252

 Interface: Select LAN

 Click OK

Add New Static Route1

STEP 2﹒Enter the following settings in Route Table in System function:

 Destination IP: Enter 192.168.20.1

 Netmask: Enter 255.255.255.0

 Gateway: Enter 192.168.1.252

 Interface: Select LAN

 Click OK

Add New Static Route2
