SG-500 VPN Security Gateway User’s Manual

- 69 -

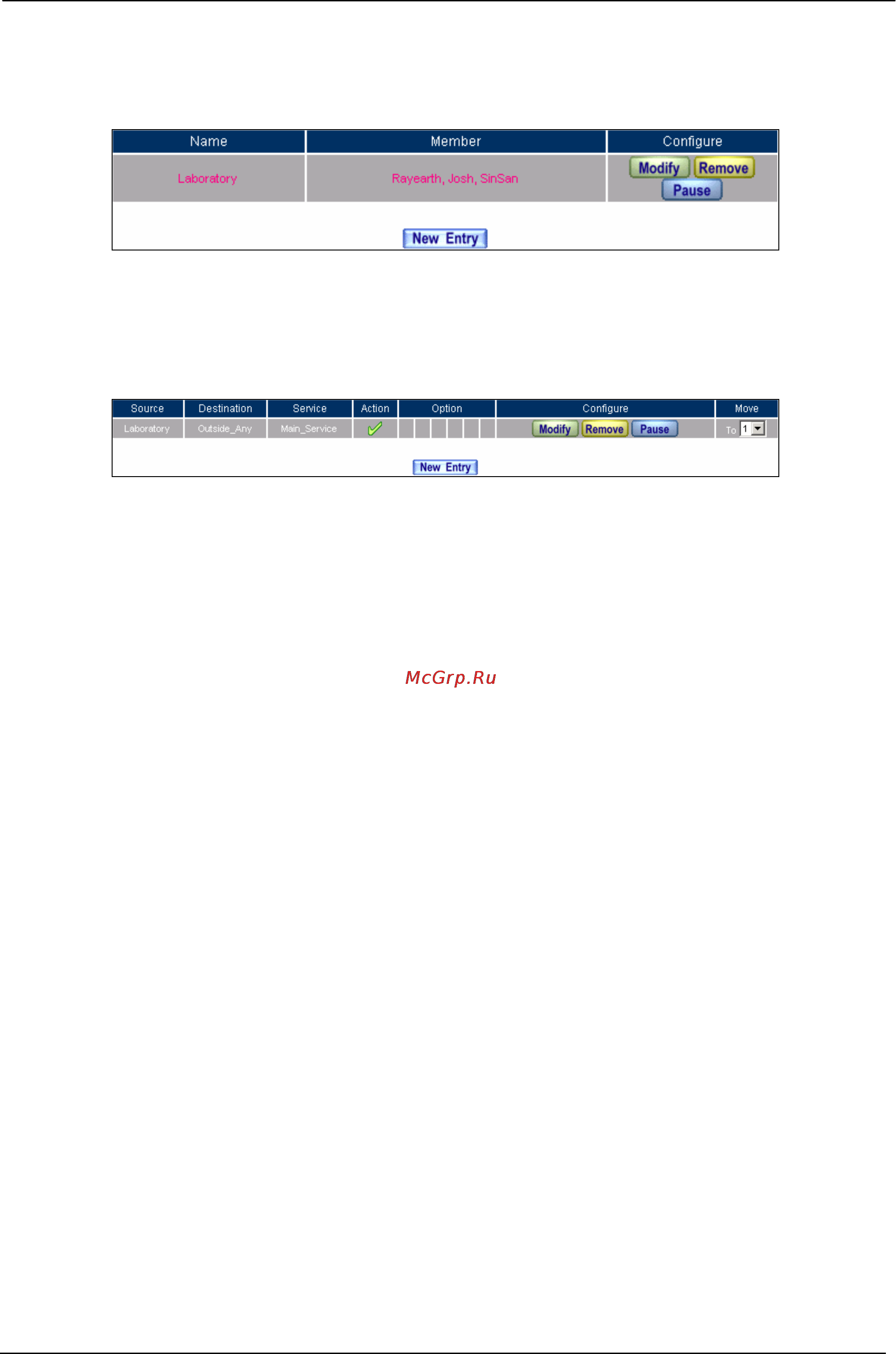

STEP 2﹒In LAN Group of Address function, setting an Address Group that can include the

service of access to Internet.

Setting Address Book Group

STEP 3﹒Compare Service Group to Outgoing Policy.

Setting Policy
