SG-500 VPN Security Gateway User’s Manual
- 73 -
4.7 QoS
By configuring the QoS, you can control the OutBound and InBound Upstream/Downstream
Bandwidth. The administrator can configure the bandwidth according to the WAN bandwidth.
Downstream Bandwidth：Configure the Guaranteed Bandwidth and Maximum Bandwidth.
Upstream Bandwidth：Configure the Guaranteed Bandwidth and Maximum Bandwidth.
QoS Priority：Configure the priority of distributing Upstream/Downstream and unused bandwidth.
The SG-500 configures the bandwidth by different QoS, and selects the suitable QoS through
Policy to control and efficiently distribute bandwidth. The SG-500 also makes it convenient for the
administrator to make the Bandwidth to reach the best utility.

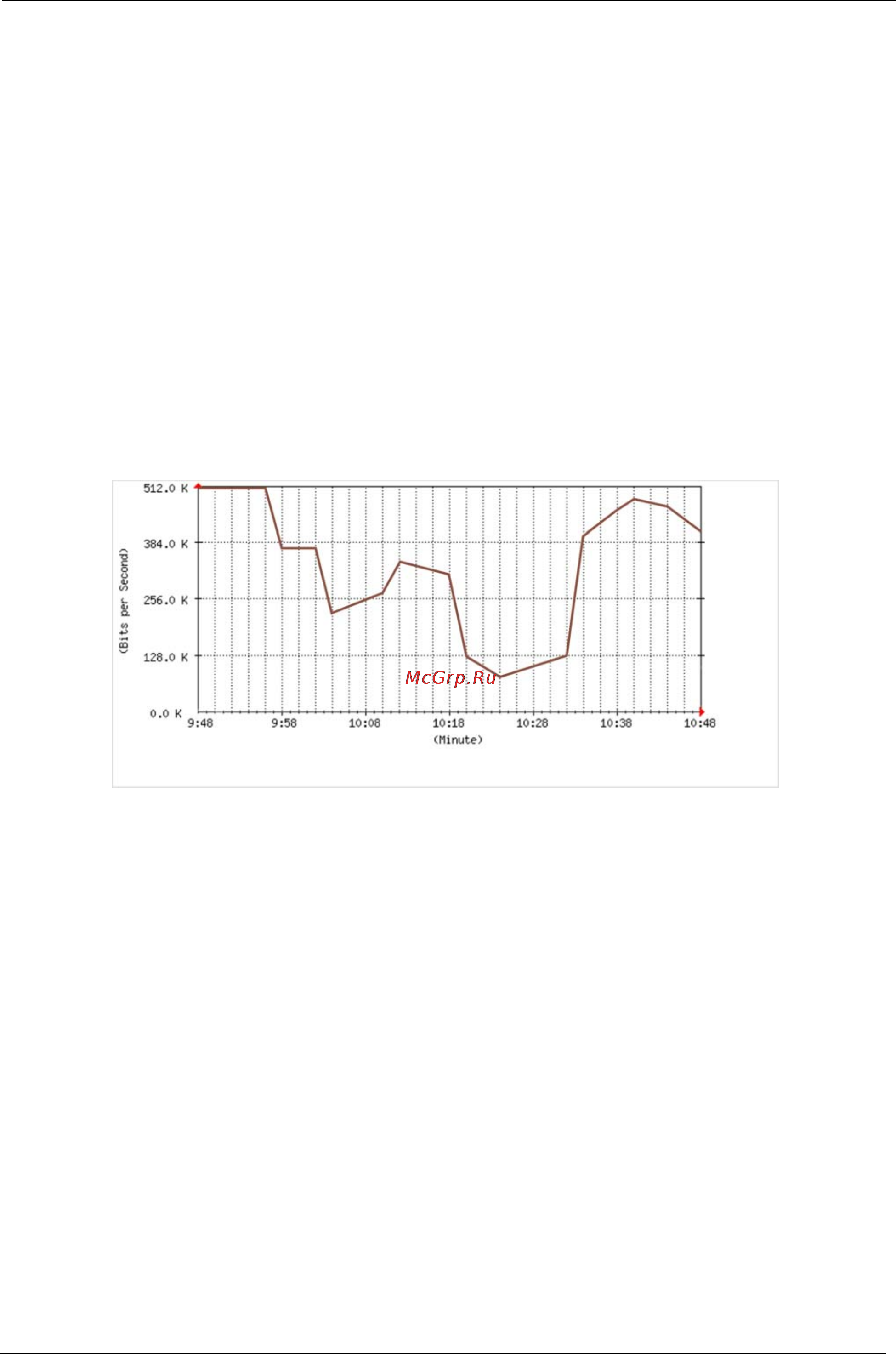

The Flow Before Using QoS Function
