SG-500 VPN Security Gateway User’s Manual
- 88 -
STEP 4﹒When user is going to access to Internet through browser, the authentication UI will
appear in Browser. After entering the correct user name and password, click OK to
access to Internet.
STEP 5﹒ If the user does not need to access to Internet anymore and is going to logout, he/she
can click LOGOUT Auth-User to logout the system. Or enter the Logout
Authentication Web UI (http:// LAN Interface: Authentication port number/ logout.html)
to logout.

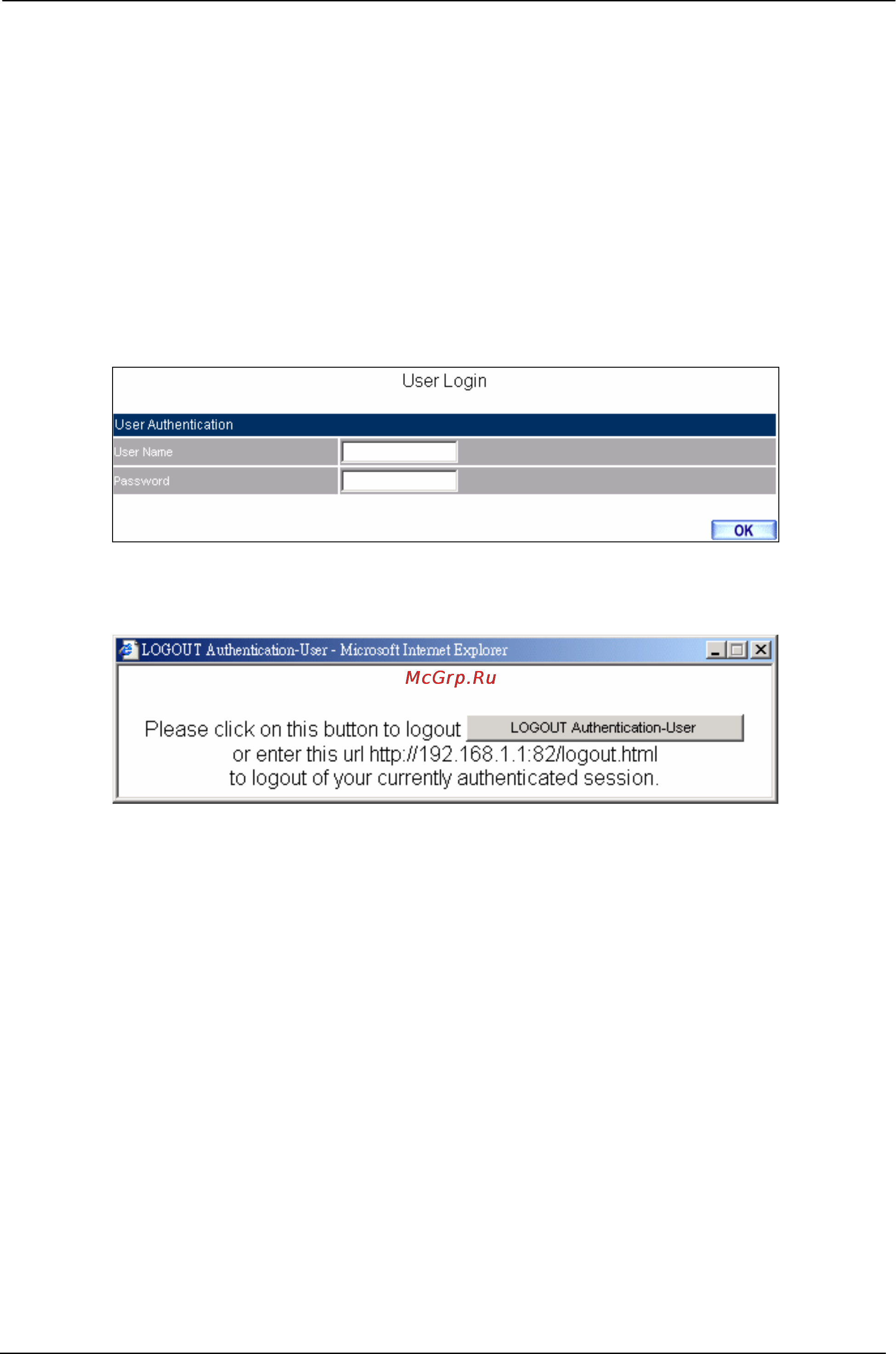

Access to Internet through Authentication Web UI
Logout Auth-User Web UI
