Chapter 6. User Accounts

157

2. Enter a name and description.

Note: 1. The Name can be from 2–32 English alphanumeric characters,

but cannot contain the following: / \ [ ] : ; | = , + * ? < > @ " '

2. The Description can be up to 256 Bytes

3. Click Save.

4. The system will ask you to add members to this group. An example is

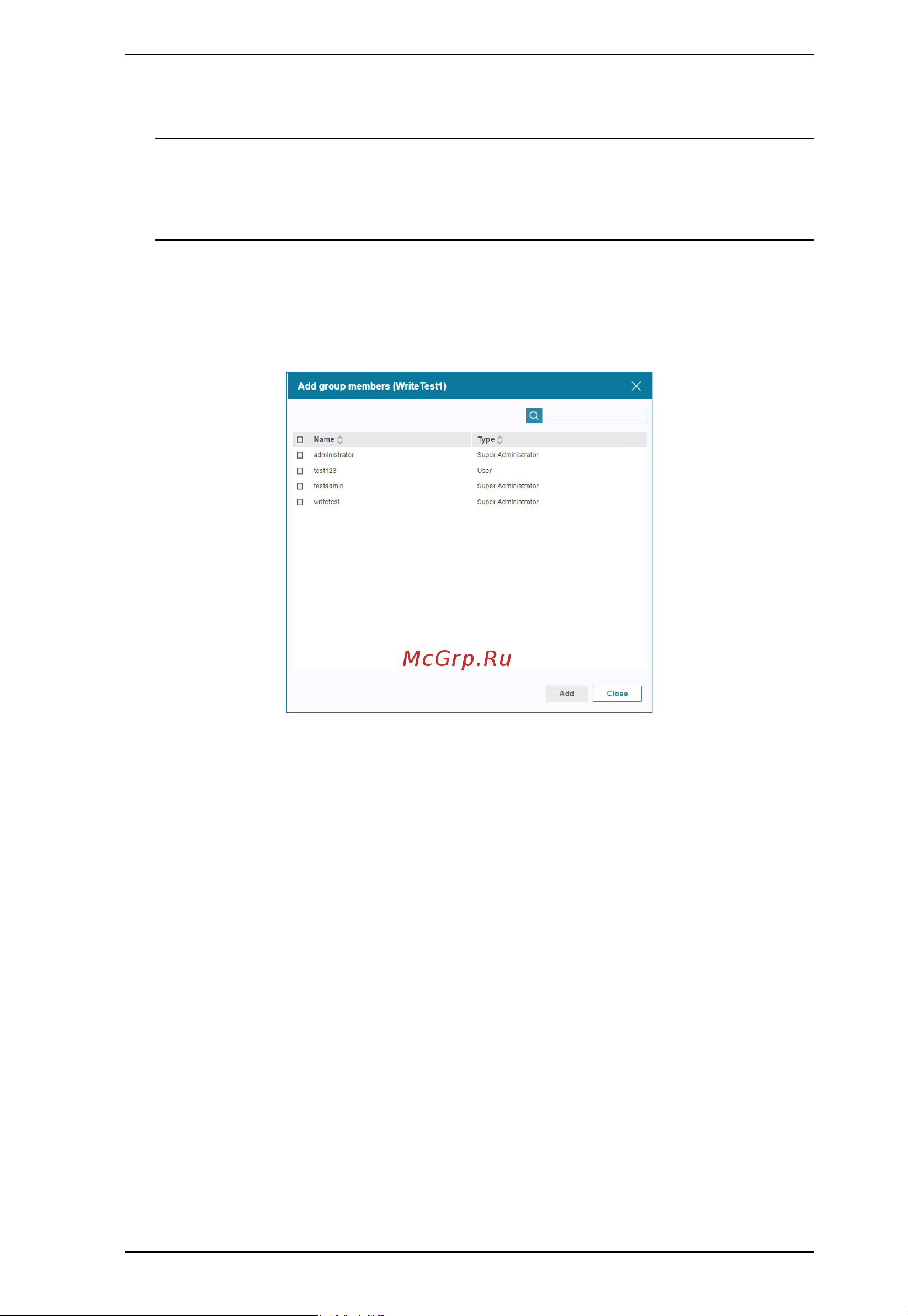

shown:

5. Check the users you wish to include into the group and click Add.

6. When you have finished adding the users, click Close.
