CC2000 User Manual

158

Edit Group



Edit Group Access Rights

Follow the steps below to edit the access rights of a group:

1. Check the group and click Edit.

Alternatively, you can move your cursor over the group and click the

pencil icon.

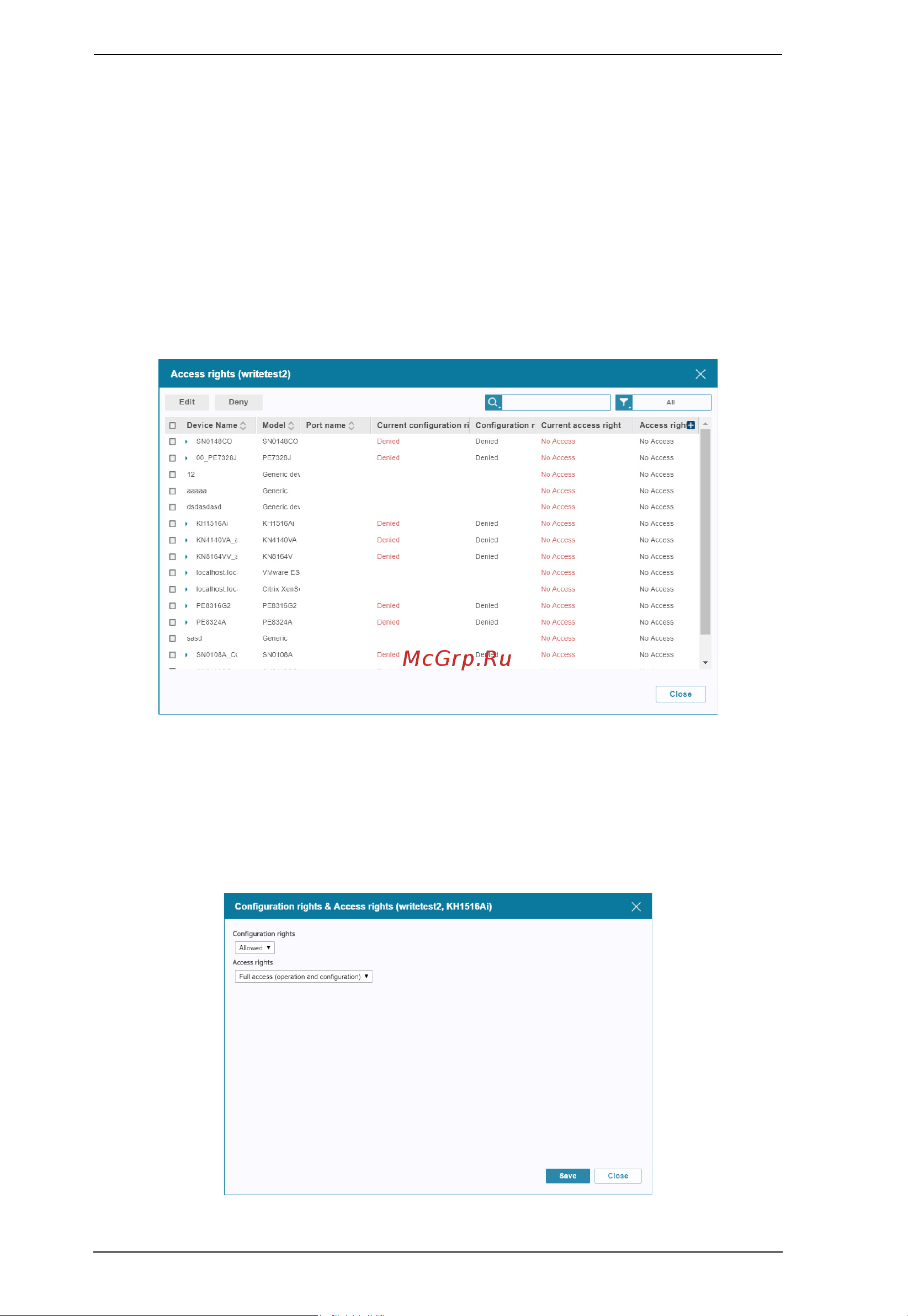

2. Click Access rights and a window will pop up. An example is shown:

3. Check a device or port and click Edit.

Alternatively, you can move your cursor over the device or port and click

the pencil icon.

A window will pop up. An example is shown:
