Autel MOT PRO [100/157] Www autel russia ru

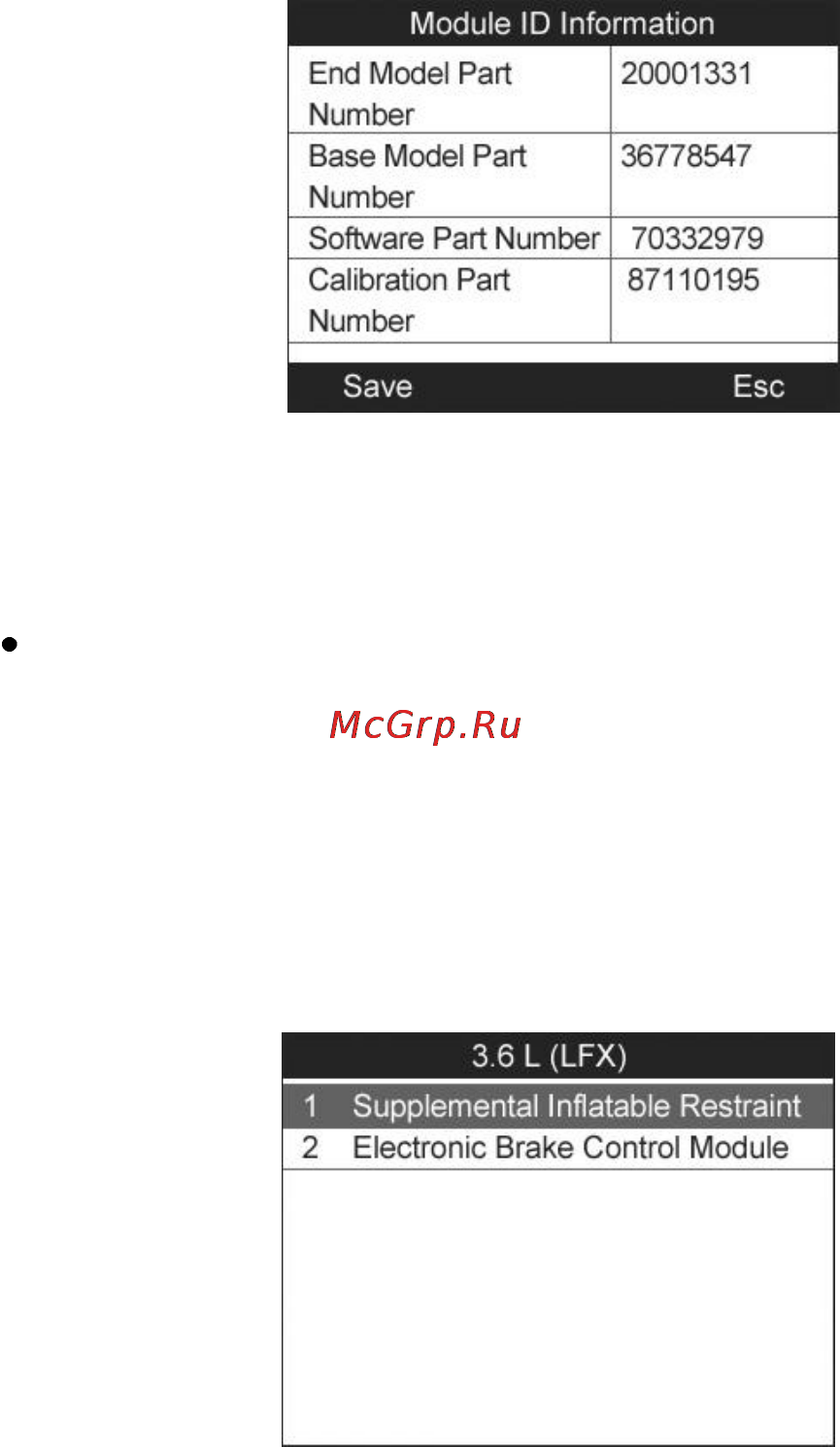

2) View module information present with its IDs and part

numbers.

Figure 12.24

3) Select Save to store the module ID information or press the

ESC button to exit without saving.

If the vehicle does not support ABS communication, an

advisory message shows on the screen. Press ESC button to

return to the previous menu.

12.3 SRS Diagnostics

After the vehicle information is entered correctly, select SRS system

to perform SRS diagnostics. Take GM as an example.

Figure 12.25

From the ABS and SRS menu use the UP/DOWN scroll button to

select Supplemental Inflatable Restraint and press the OK button.

The screen displays as below.
