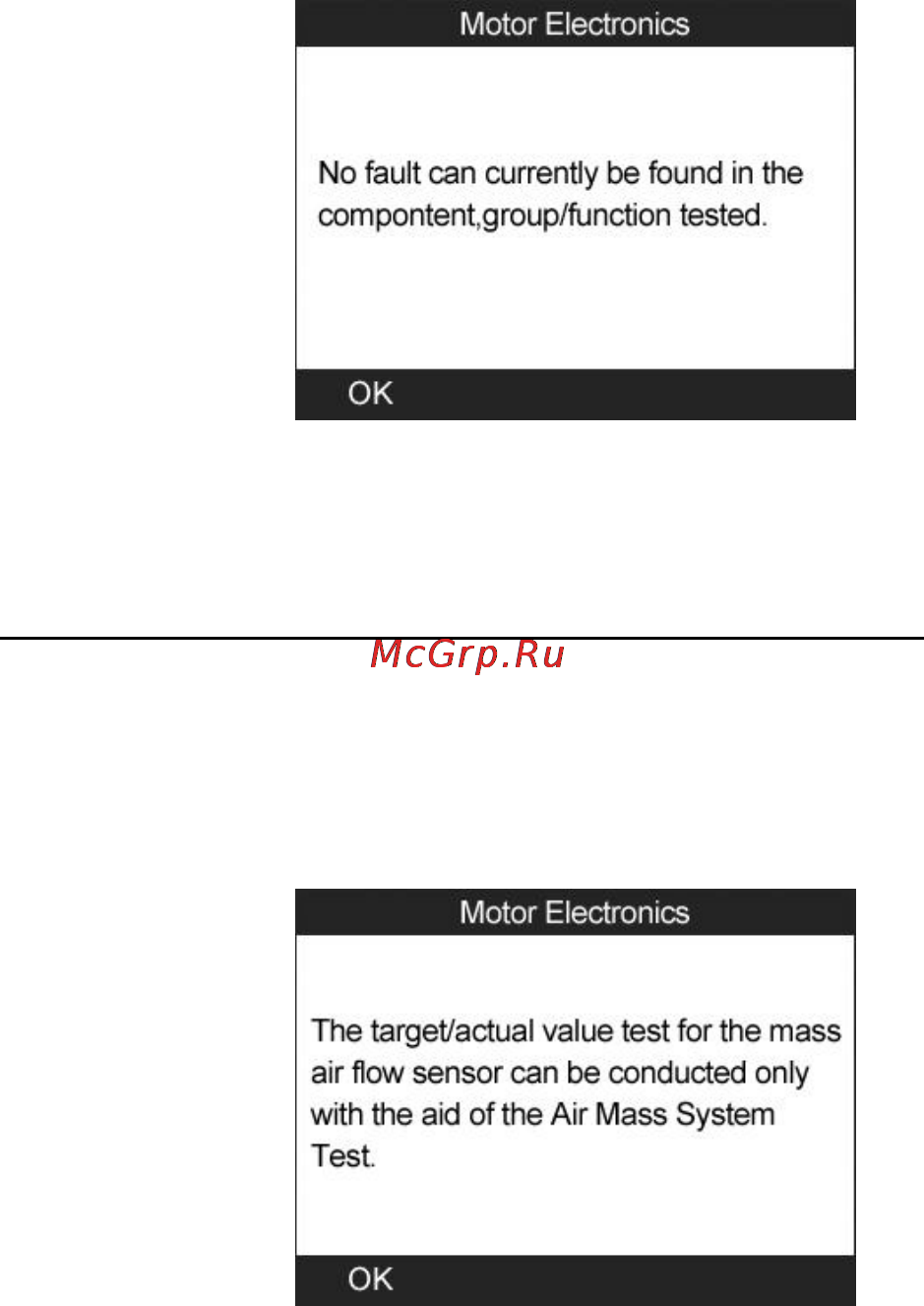

Figure 14.48

i) Or, select Test Selection to return to previous menu.

【5】Actual/target value check-mass air flow sensor

a) From the particle filter test menu (Figure 14.29) use the

LEFT/RIGHT scroll button to select 【5】 and press the OK

button.

Figure 14.49

b) Press OK button to return to previous menu.
