Руководство пользователя Страница: 95

Autel MOT PRO [95/157] Www autel russia ru

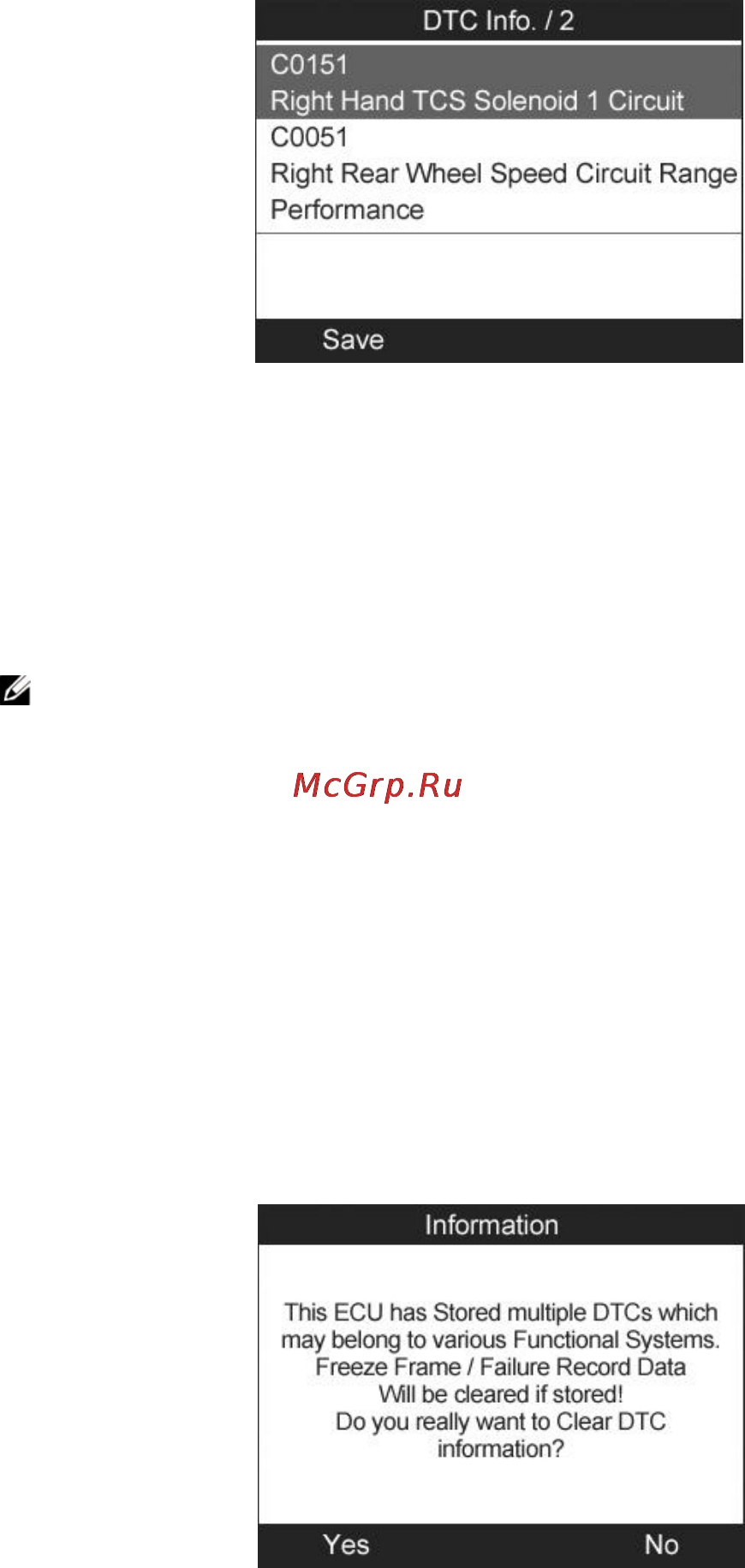

Figure 12.15

4) Select Save option to store the codes or press ESC button to

exit without saving.

 Erase Codes

This function allows user to erase the ABS DTCs in vehicle ECU.

NOTE: If you plan to take the vehicle to a Service Center for

repair, DO NOT erase the ABS DTCs from the vehicle’s

computer. If the codes are erased, valuable information that

might help the technician troubleshoot the problem will be

erased.

1) From the diagnostic function menu (Figure 12.13) use the

UP/DOWN scroll button to select Diagnostic Trouble Codes

and press the OK button.

2) Use the UP/DOWN scroll button to select Clear DTC

Information and press the OK button. (Figure 12.14)

3) A warning message will come up asking your confirmation.

www.autel-russia.ru
