Руководство пользователя Страница: 99

Autel MOT PRO [99/157] Www autel russia ru

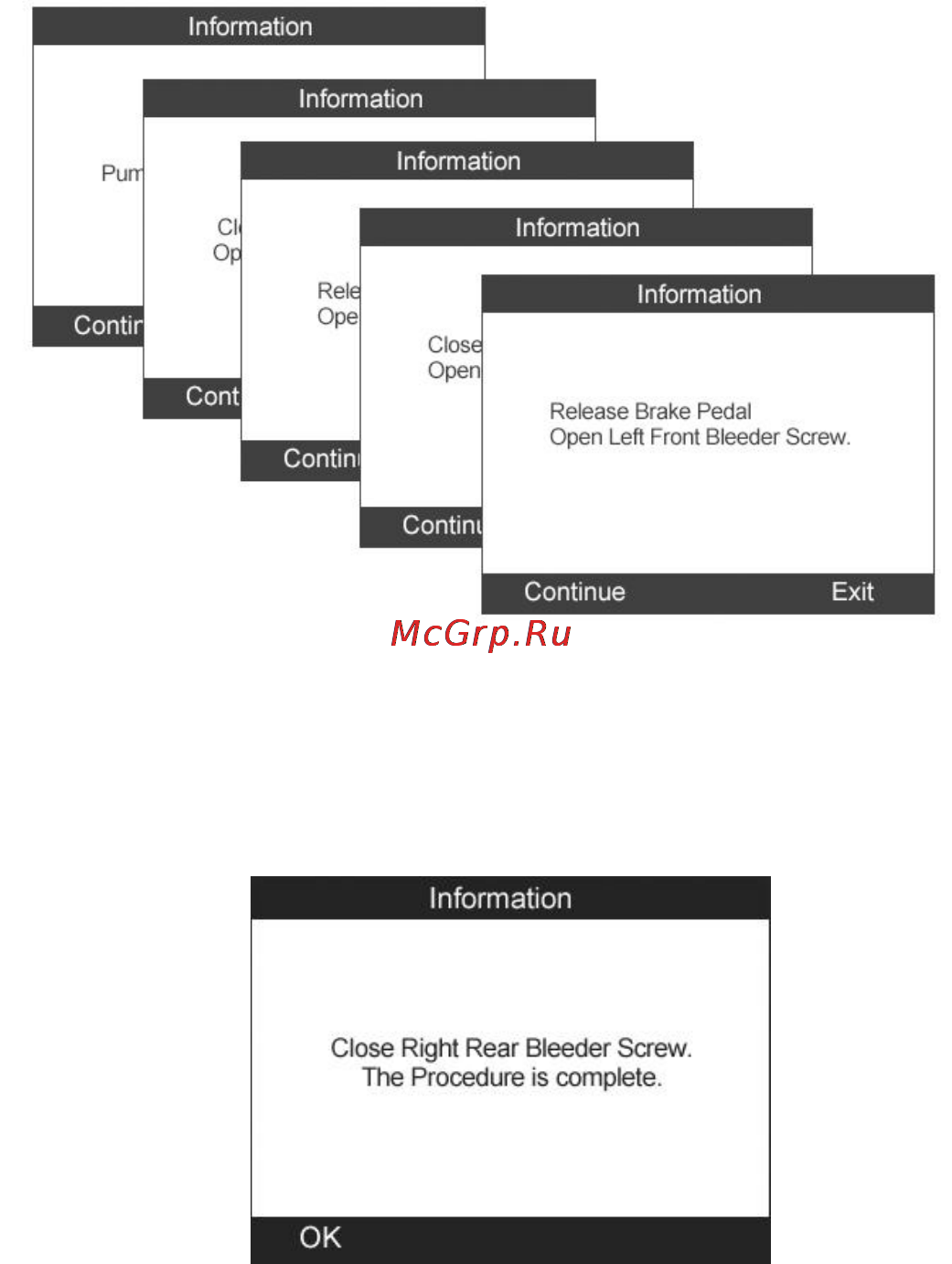

Figure1 12.22

4) Take actions properly until the tool displays a completion

message.

Figure 12.23

 Module ID Information

This function allows users to view the selected control module

information.

1) From the diagnostic function menu (Figure 12.13) use the

UP/DOWN scroll button to select Module ID Information

and press the OK button.
