Autel MOT PRO [62/157] Www autel russia ru

Autel MOT PRO [62/157] Www autel russia ru

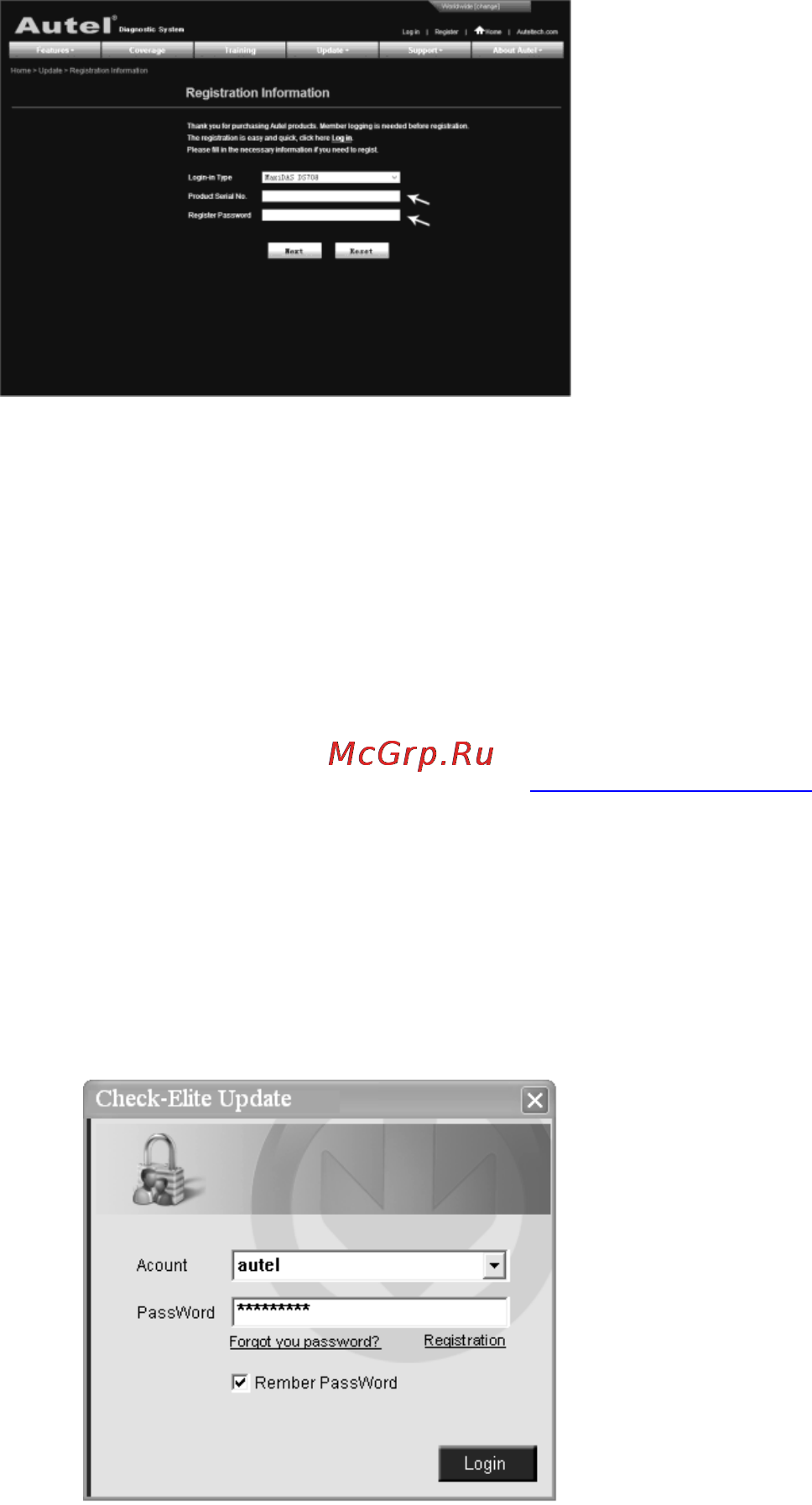

Figure 8.1

8.2. Update Procedure

Autel frequently releases software updates that you can download.

The Update feature makes it very easy to determine and get exactly

what you need.

1. Install MOT Pro PC Suit through the included CD, or

download the applications in our website: www.auteltech.com

or our distributors’ site.

2. Make sure that your computer is connected to the Internet.

3. Load the SD card of the scan tool to your PC.

4. Run the update option in MOT Pro PC Suit software. Wait for the

Figure 8.2
