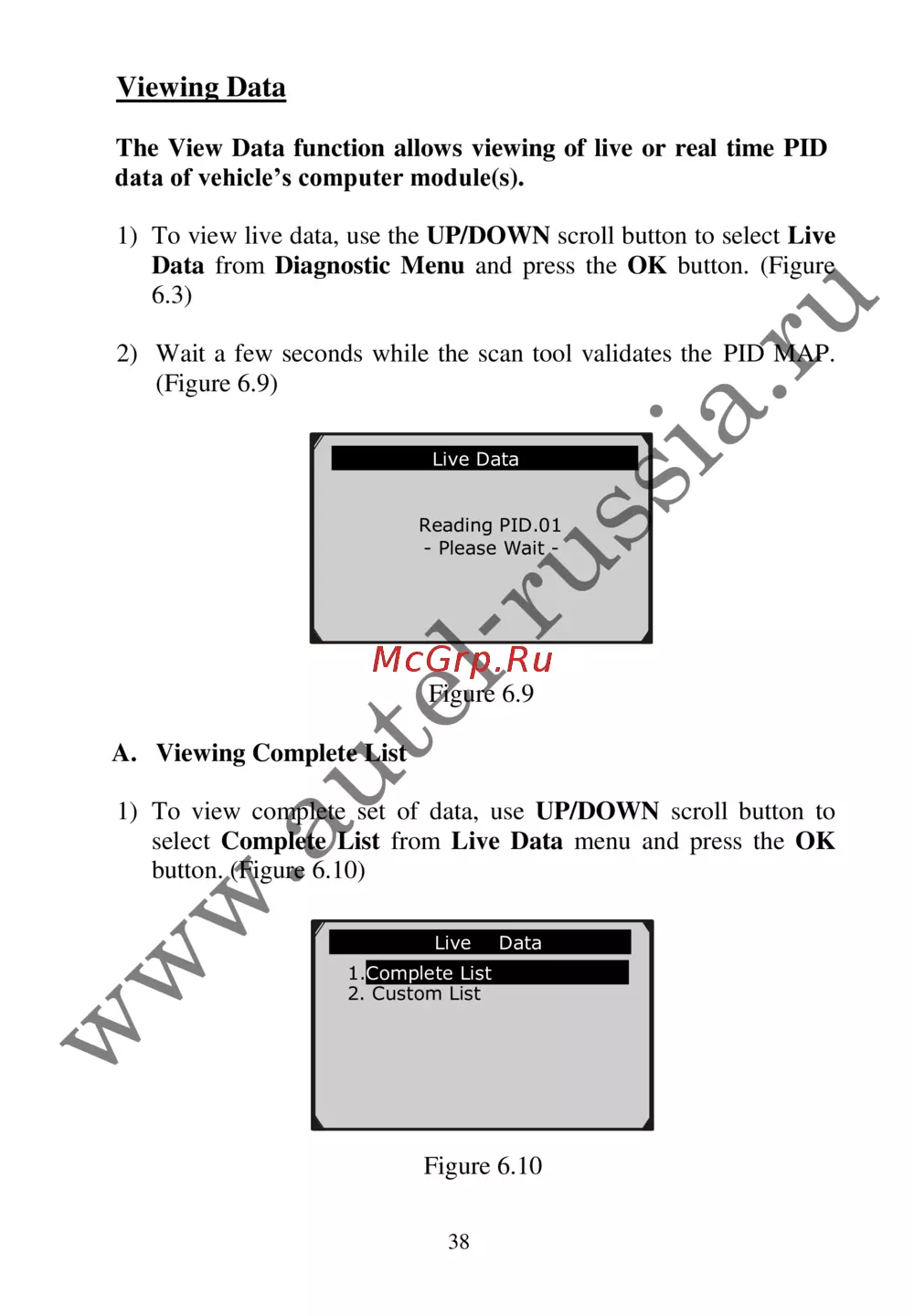

Viewing Data

The View Data function allows viewing of live or real time PID

data of vehicle’s computer module(s).

1) To view live data, use the UP/DOWN scroll button to select Live

Data from Diagnostic Menu and press the OK button. (Figure

6.3)

2) Wait a few seconds while the scan tool validates the PID MAP.

(Figure 6.9)

Figure 6.9

A. Viewing Complete List

1) To view complete set of data, use UP/DOWN scroll button to

select Complete List from Live Data menu and press the OK

button. (Figure 6.10)

Figure 6.10

Live Data

Reading PID.01

- Please Wait -

…………………Live Data .

1.Complete List

2. Custom List
