Autel MOT PRO [133/157] Www autel russia ru

132

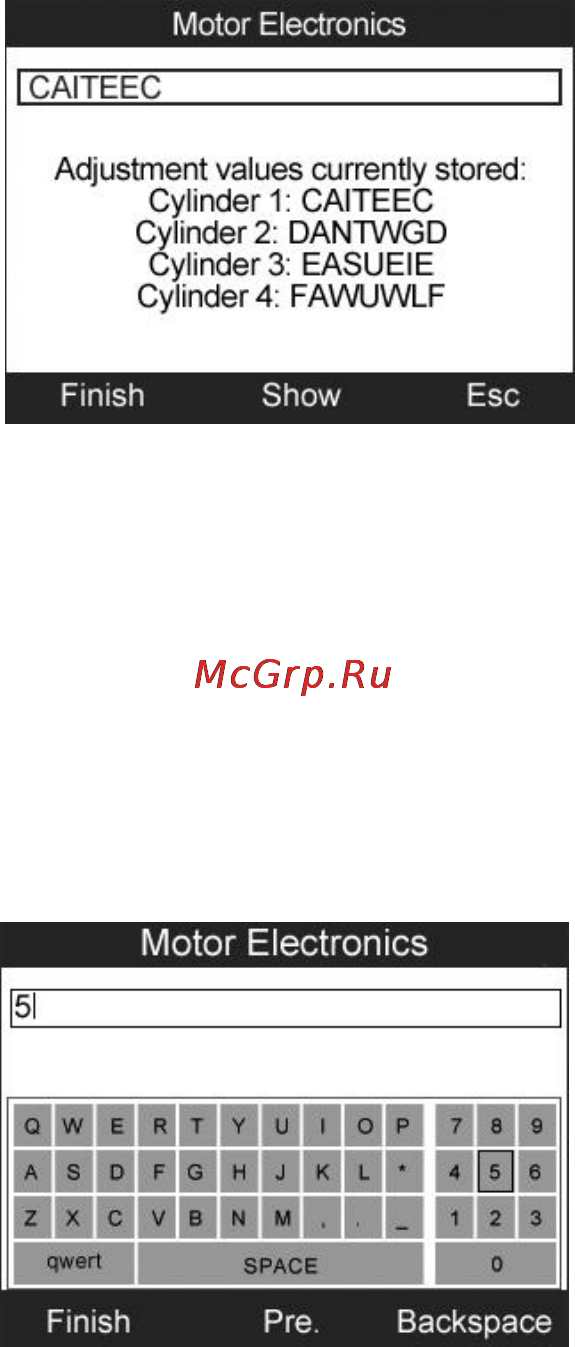

Figure 14.20

The three keys at the bottom of the screen work as below.

[Finish]: After entering a new value, use this key to save the value

to the tool.

[Show]: Press this key to pop up a soft keyboard to facilitate your

input. (Figure 14.21)

[Esc]: Press this key to exit.

Figure 14.21

The three keys at the bottom of the screen work as below.

[Finish]: When you finished the input, select this key to confirm

your input and exit.

[Pre.] : Moves a space to the left.

[Backspace]: Uses this key to erase the previous digit or character

when typing.

www.autel-russia.ru
