Autel MOT PRO [96/157] Www autel russia ru

Figure 12.16

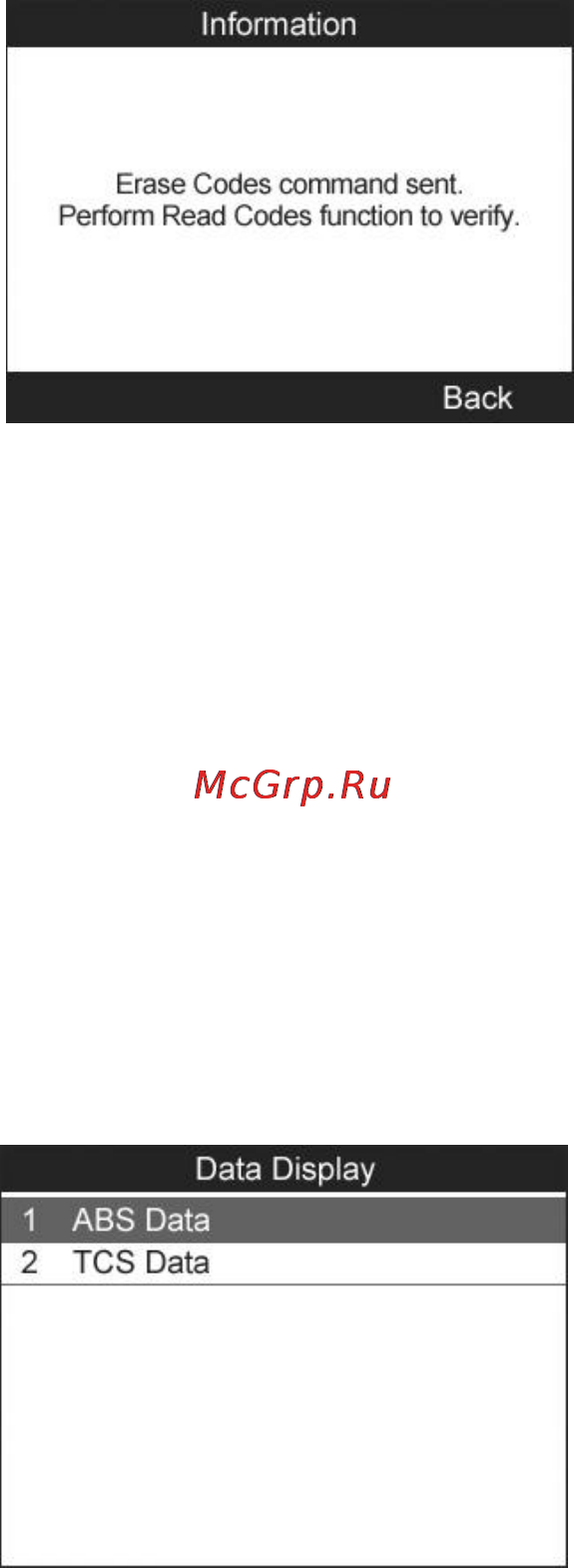

4) Select Yes to continue or No to exit. When the command is

sent, the tool will display a message as below:

Figure 12.17

5) To make sure the codes are erased completely, perform Read

DTC Information function to verify.

 Data Display

This function enables you view ABS-related data readings from a

selected ECU. With the live data screen displayed, you can view the

data in Text or graphical format, record and save files for later

viewing, pause the readings and view past data, and more.

1) From the diagnostic function menu (Figure 12.13) use the

UP/DOWN scroll button to select Data Display and press the

OK button.

Figure 12.18
