126

【2】Reset adjustment to 0

【3】End with programming (the new value is permanently stored)

【4】End without programming (the old value is retained)

A. Enter new value for adjustment

From the Starting Basic Inspection Quantity menu (Figure 14.13)

use the LEFT/RIGHT scroll button to select 【1】 and press the OK

button. The screen displays as below. You will need to input a new

value for fuel delivery rate adjustment.

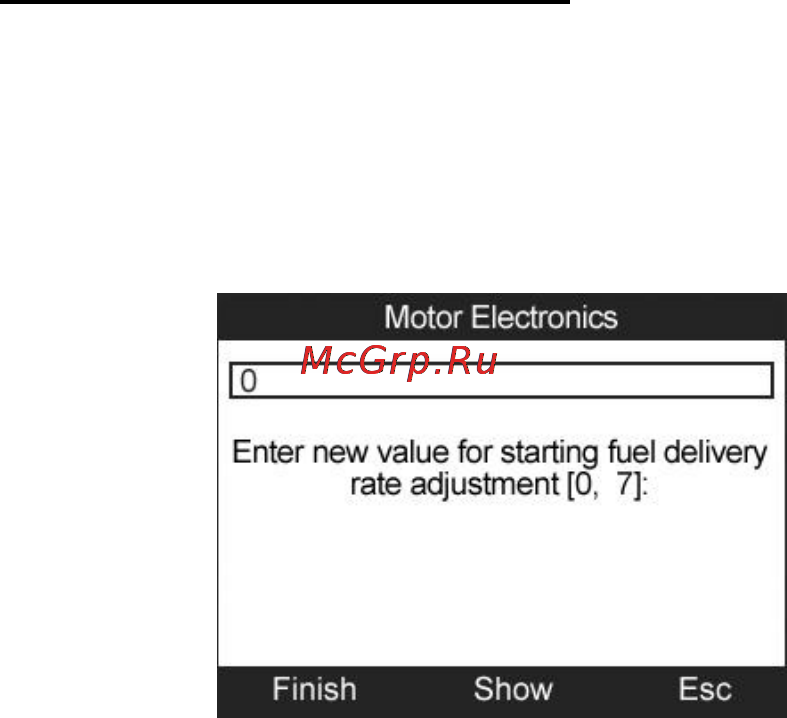

Figure 14.14

The three keys at the bottom of the screen work as below.

[Finish]: After entering a new value, use this key to save the value

to the tool.

[Show]: Press this key to pop up a soft keyboard to facilitate your

input. (Figure 14.15)

[Esc]: Press this key to exit.
