Autel MOT PRO [120/157] Www autel russia ru

119

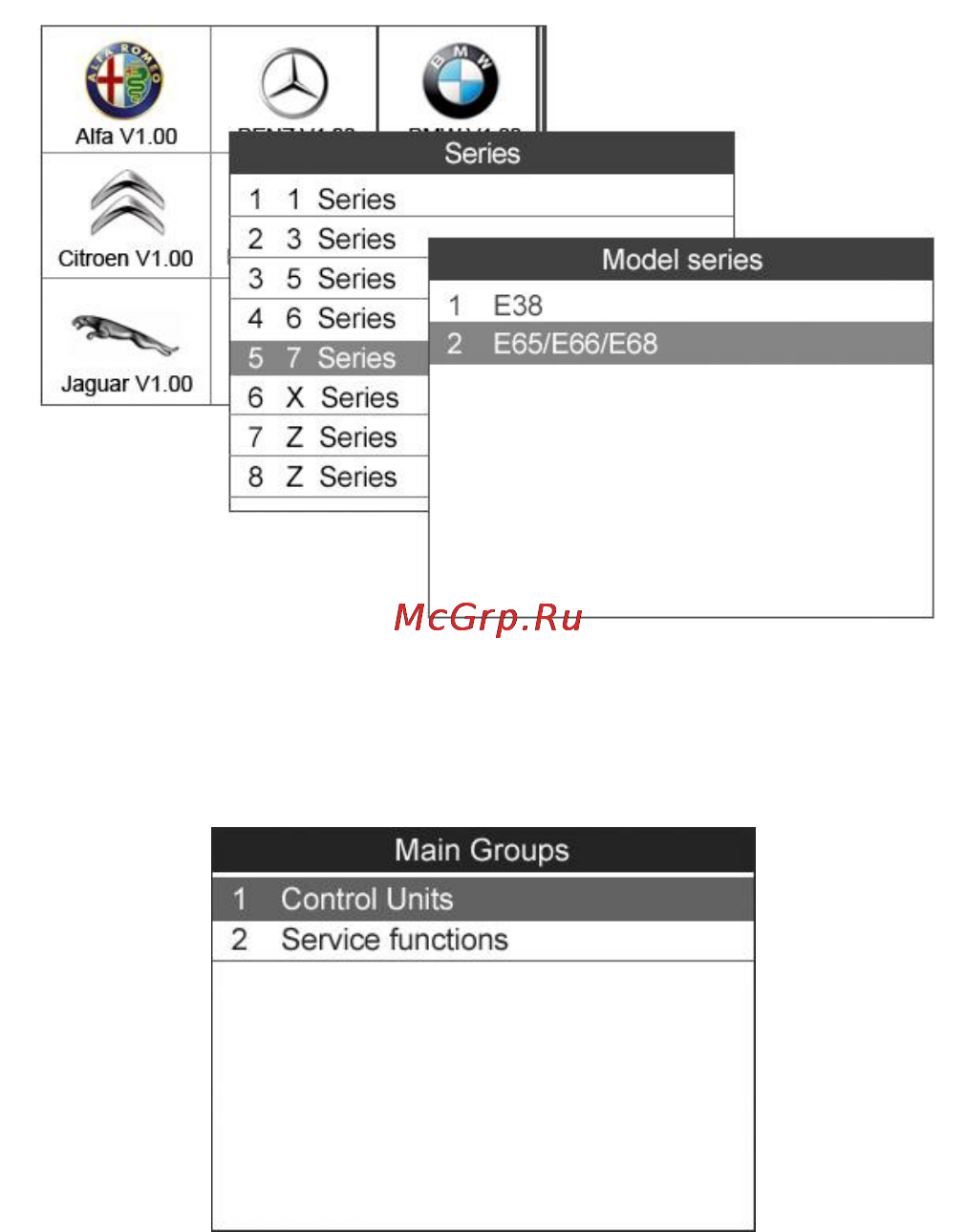

Figure 14.1

8. The screen displays as below.

Figure 14.2

14.2 DPF Diagnostics

Use the UP/DOWN scroll button to select Control Units in the

menu. (Figure 14.2）The computer will automatically detect the

DPF-related system, DDE, which is dedicated for BMW. For other

vehicles, the system may be different. Then the screen displays as

below.
