Autel MOT PRO [125/157] Www autel russia ru

124

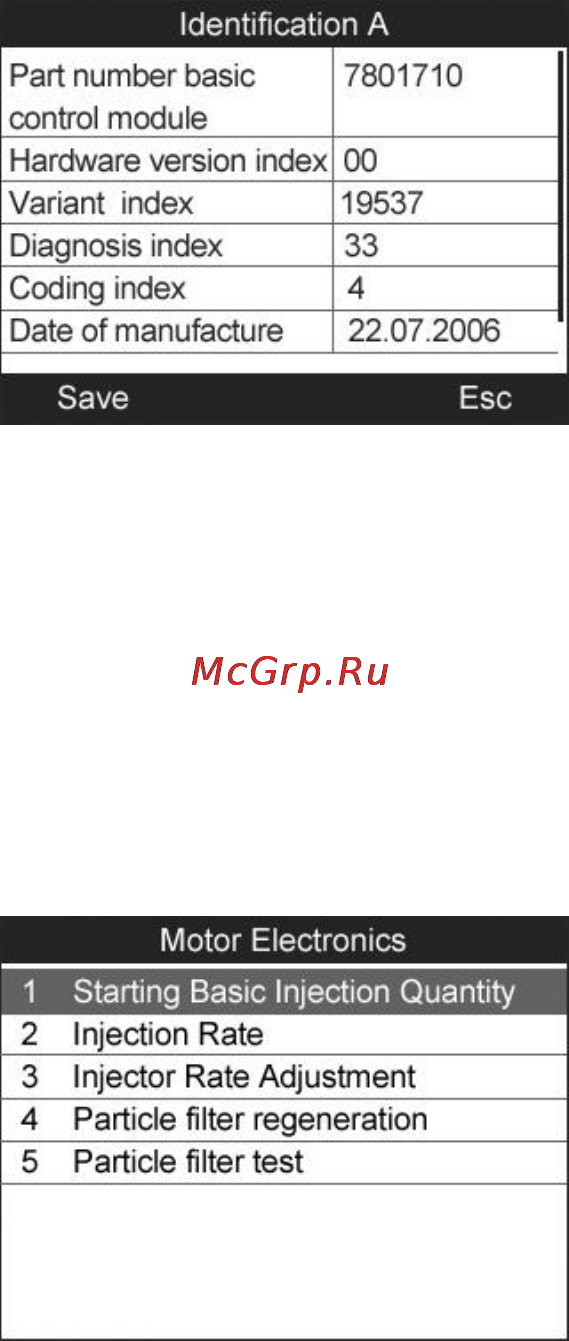

Figure 14.10

3) Select Save option to save the information for later review or

press the ESC button to return to the previous menu.

14.6 DPF Service Functions

Use the UP/DOWN scroll button to select Service Functions in the

menu. (Figure 14.2）The screen displays as below.

Figure 14.11

14.6.1 Starting Basic Inspection Quantity

This function enables you to start fuel delivery matching.

1) From the service functions menu (Figure 14.11) use the

UP/DOWN scroll button to select Starting Basic Inspection

Quantity and press the OK button.
