2) View live PIDs on the screen. Use the UP/DOWN scroll button

for more PIDs if additional information is available on more than

one page.( Figure 6.11)

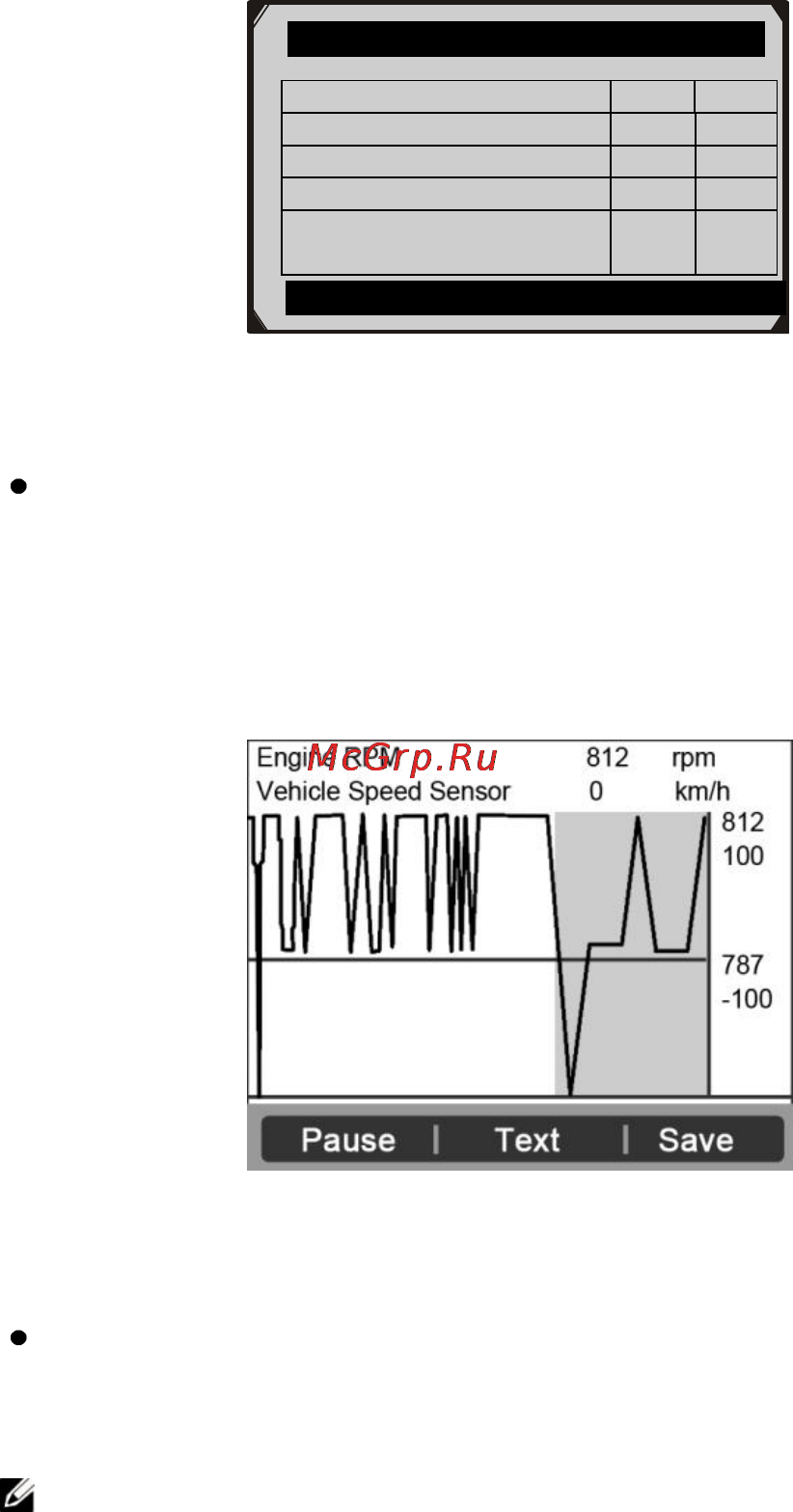

Figure 6.11

If the “Graphics” on the bottom appears when a PID is

highlighted, graphic information is available. Select

Graphics to view graph. (Figure 6.12). PID name, current

value, maximum and minimum values are displayed on the

screen.

Figure 6.12

If the “Merge Graph” on the bottom appears when a PID is

selected to view, merged graph information is available.

(Figure 6.13)

NOTE: Merge Graph can be used to compare two related

parameters in graphic mode, which is especially convenient

Complete List

Numbers of DTCs

Fuel system 1 status

Fuel system 2 status

Calculated load value

0.0

Engine coolant

temperature

-40

Pause Graphics Save
