Autel MOT PRO [101/157] Www autel russia ru

100

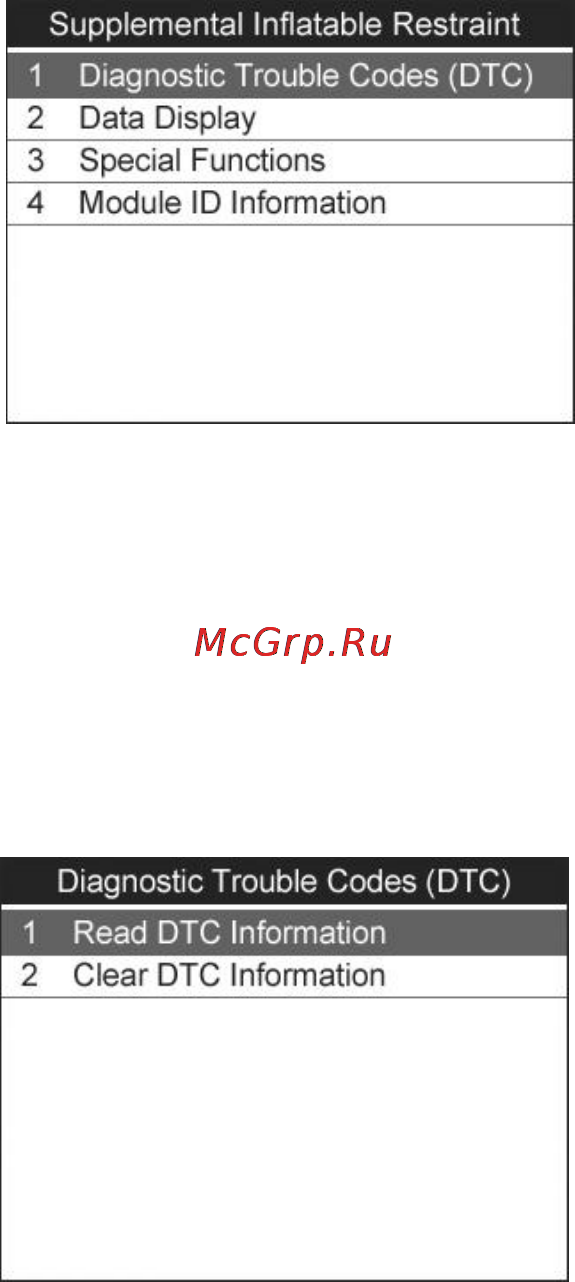

Figure 12.26

A. Read Codes

This function allows user to read the SRS DTCs from vehicle ECU.

1) From the diagnostic function menu (Figure 12.26) use the

UP/DOWN scroll button to select Diagnostic Trouble Codes

(DTC) and press the OK button.

Figure 12.27

2) Use the UP/DOWN scroll button to select Read DTC

Information and press the OK button. (Figure 12.27)

3) View DTCs and their definitions on screen.

www.autel-russia.ru
