Autel MOT PRO [52/157] Www autel russia ru

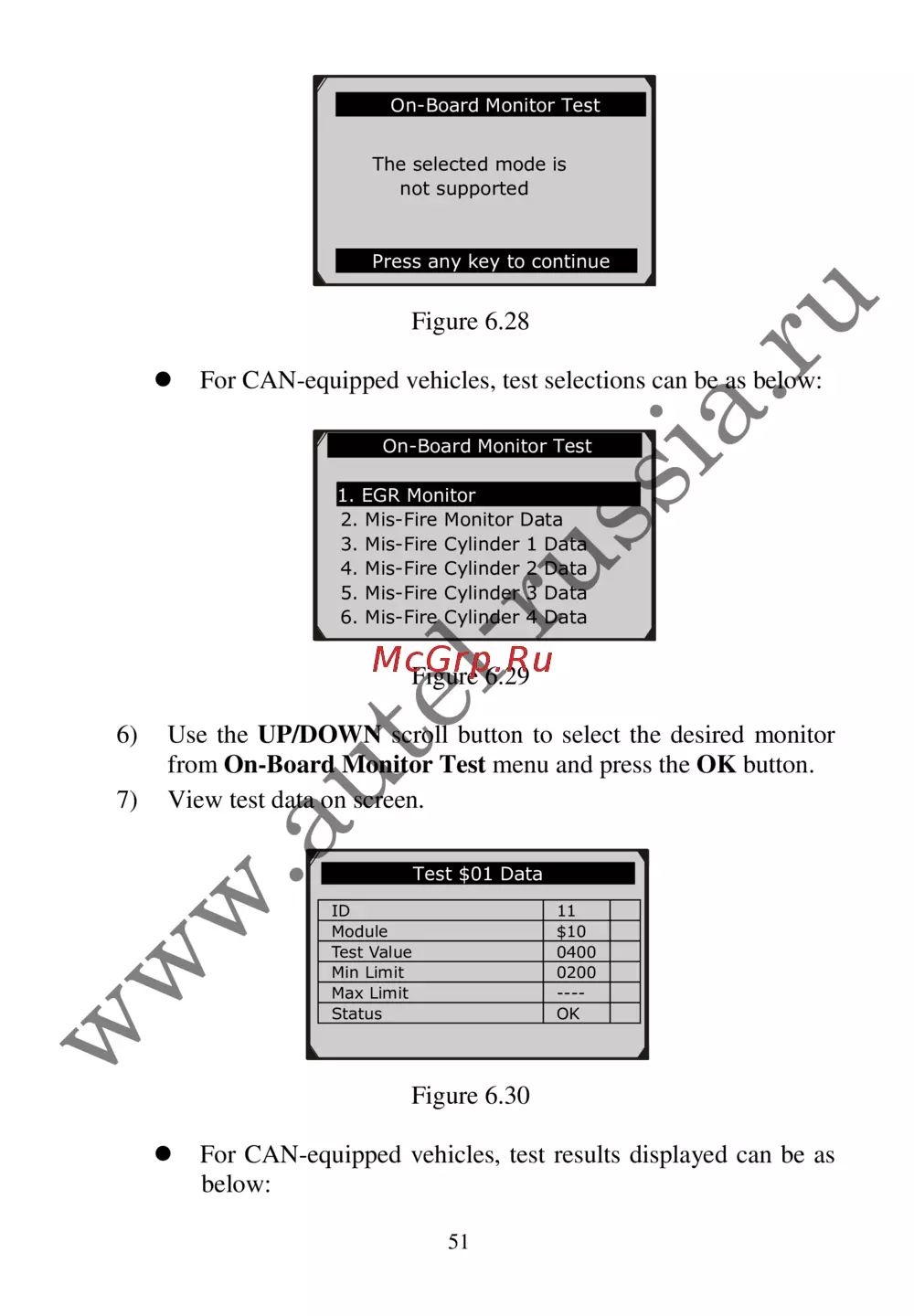

Figure 6.28

 For CAN-equipped vehicles, test selections can be as below:

Figure 6.29

6) Use the UP/DOWN scroll button to select the desired monitor

from On-Board Monitor Test menu and press the OK button.

7) View test data on screen.

Figure 6.30

 For CAN-equipped vehicles, test results displayed can be as

below:

On-Board Monitor Test ..

1. EGR Monitor

2. Mis-Fire Monitor Data

3. Mis-Fire Cylinder 1 Data

4. Mis-Fire Cylinder 2 Data

5. Mis-Fire Cylinder 3 Data

6. Mis-Fire Cylinder 4 Data

On-Board Monitor Test

The selected mode is

not supported

Press any key to continue

Test $01 Data

Module

$10

Test Value

0400

Min Limit

0200

Max Limit

----

Status

www.autel-russia.ru
