B. Auto Reset

Most American and European vehicles can be reset automatically by

the scan tool.

NOTE: In this manner, the scan tool will communicate with

the vehicle being tested. If there is a linking error, please

refer to product troubleshooting.

To finish this procedure, please follow these steps (Taking

PEUGEOT as an example):

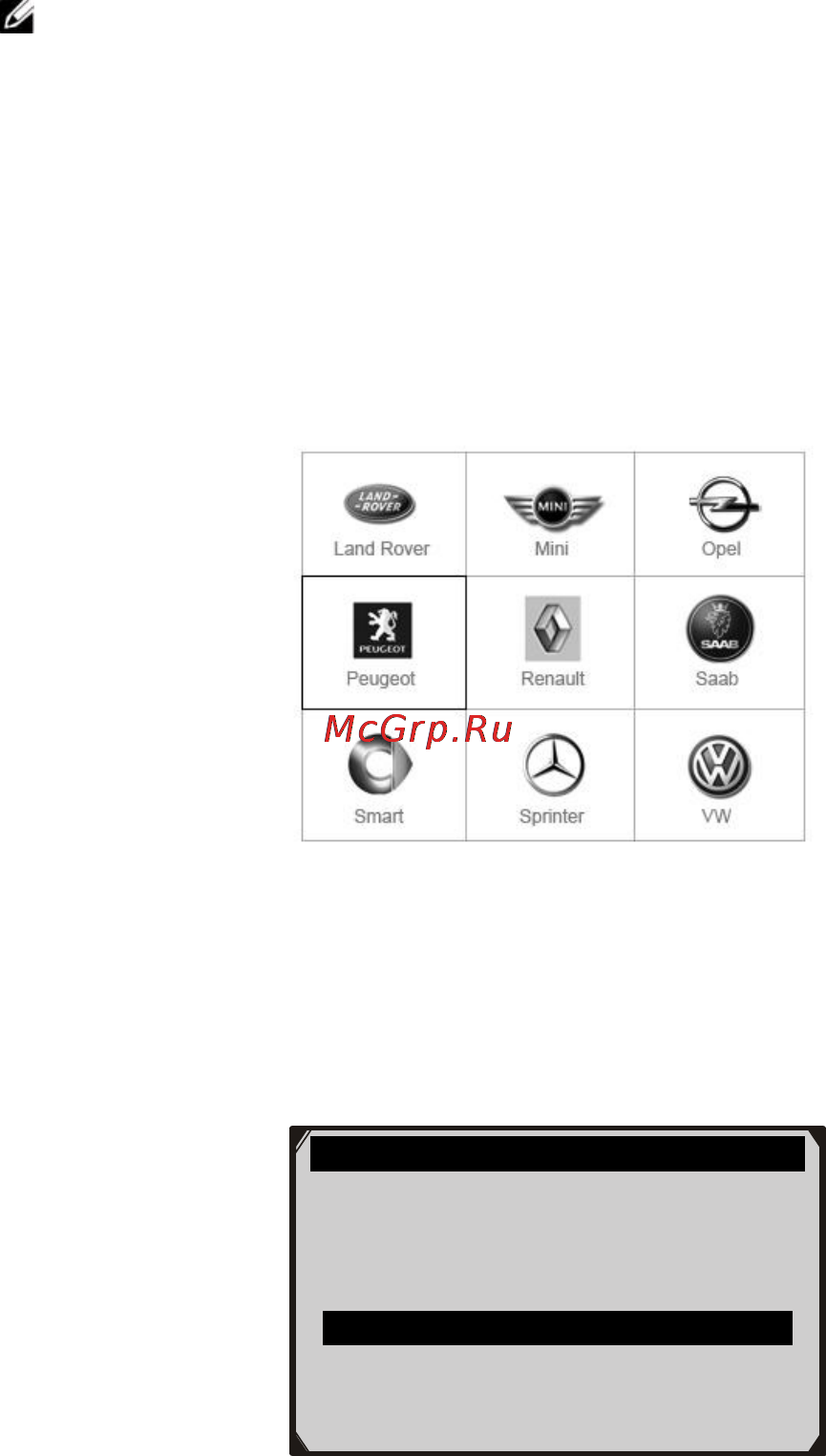

1) From the vehicle make screen, select PEUGEOT and press OK

button.

Figure 9.5

2) Step by step, select the right options for your vehicle according

to each screen that appears.

Figure 9.6

PEUGEOT

1.206/206MUX

2.206+

3.207

4.307

5.308

6.406
