Autel MOT PRO [149/157] Www autel russia ru

148

Please refer to 3.8 Product Troubleshooting for more details.

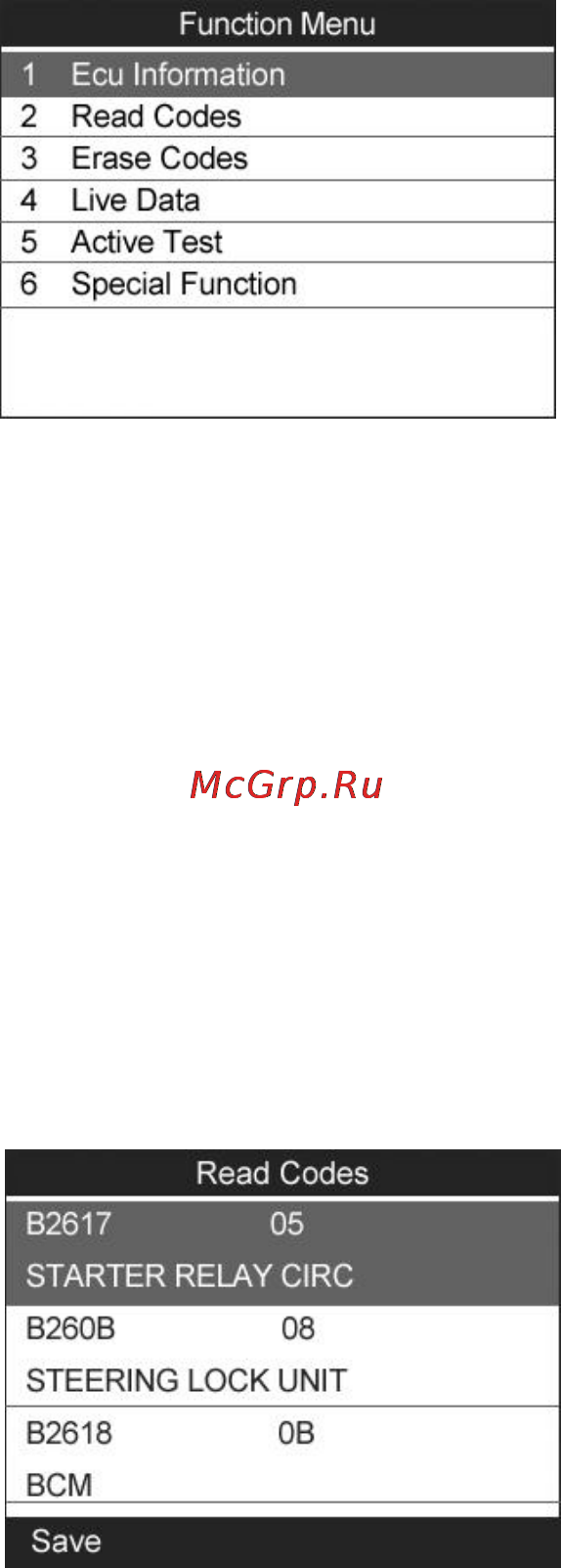

Figure 15.1

15.2 TPMS diagnostics

 Read Codes

This function enables you to read TPMS-related diagnostic trouble

codes (DTCs) from a selected ECU.

1) From the TPMS diagnostic function menu (Figure 15.1), use the

UP/DOWN scroll button to select the Read Codes, and press

OK button.

2) The tool will display TPMS DTCs retrieved from the vehicle’s

ECU for your viewing. Select “Save” to store data for future

review, or press Esc button to exit without saving. (Figure 15.2).

Figure 15.2

 Erase Codes

www.autel-russia.ru
