1) From the Utility function menu (Figure 13.11) use the

UP/DOWN scroll button to select Records Clear and press the

OK button.

2) The tool will display a list of records.

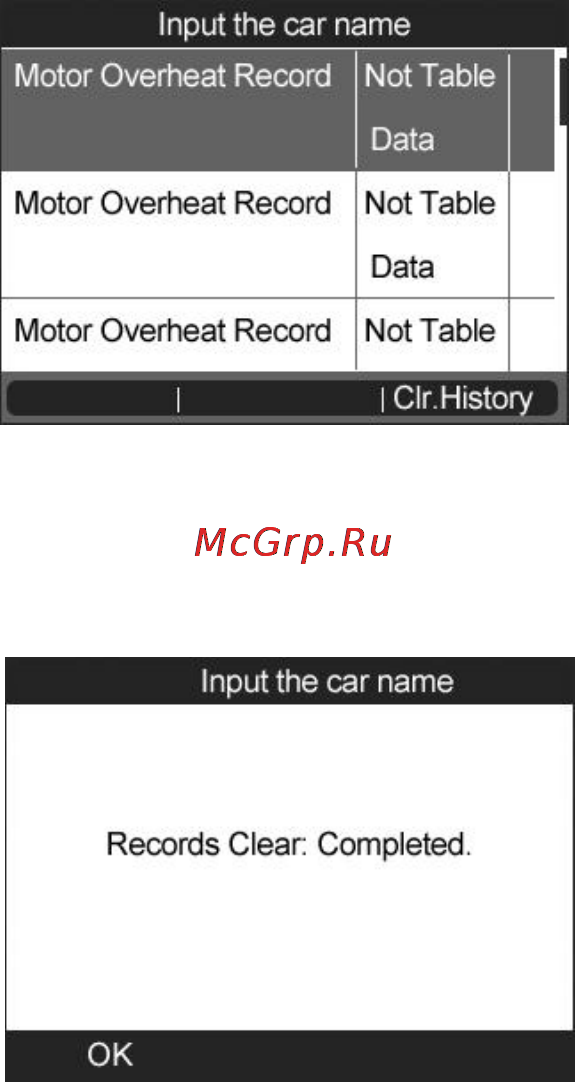

Figure 13.13

3) Select Clr Histroy to continue operation or ESC to exit. When

the command is sent, the tool will display a message as below.

Figure 13.14

C. Counter Clear

1) From the Utility function menu (Figure 13.11) use the

UP/DOWN scroll button to select Counter Clear and press

the OK button.

2) The tool will display a prerequisite message as below. Select

Yes to continue or No to exit.
