1) From the TPMS diagnostic function menu (Figure 15.1), use the

UP/DOWN scroll button to select the Special Function, and

press OK button.

2) The tool will display a list of available special functions for the

vehicle being tested.

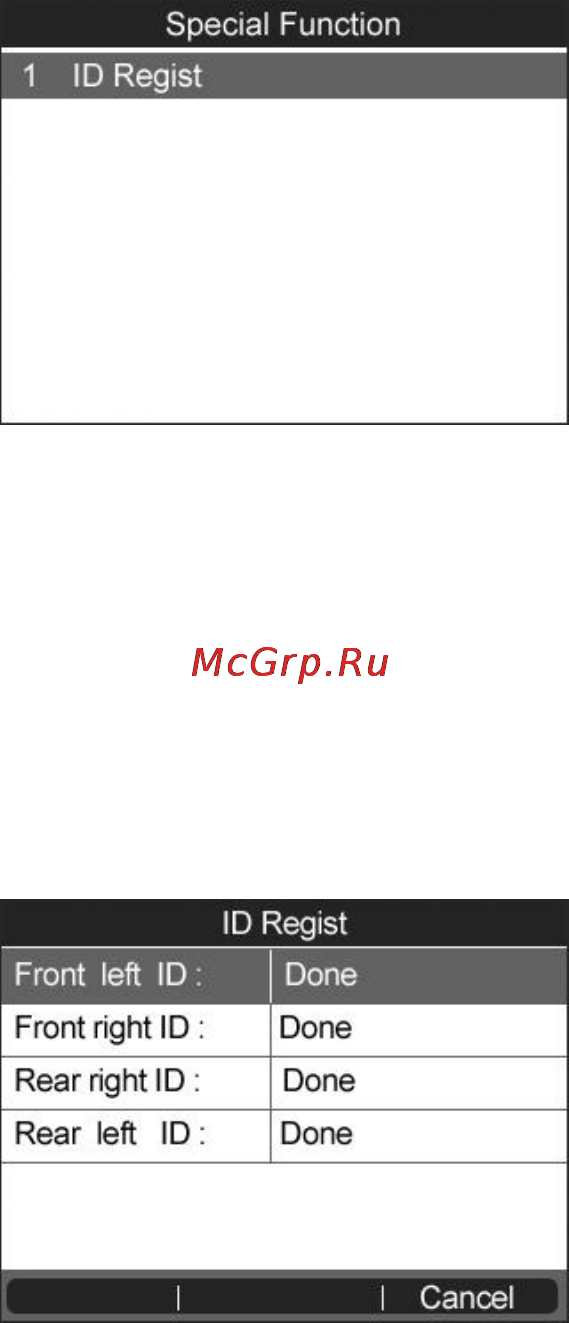

Figure 15.12

Taking ID Regist for example:

1) From Special Function Menu, use the UP/DOWN scroll button

to select ID Regist function. (Figure 15.12)

2) The tool will communicate with vehicle computer and register

the TPMS sensor IDs to the ECU. When the registration is

completed, the screen displays as below.

Figure 15.13

 Ecu Information

This function enables you to retrieve the ECU information.
