D. Special Functions

This function allows users to do various active tests or module

programming. The function options vary with the vehicles being

tested.

1) From the diagnostic function menu (Figure 12.26) use the

UP/DOWN scroll button to select Special Functions and press

the OK button.

2) The tool will display a list of available special functions for the

vehicle being tested. Use the UP/DOWN scroll button to select

the desired function, and press the OK button. (Taking Chime

Output as an example)

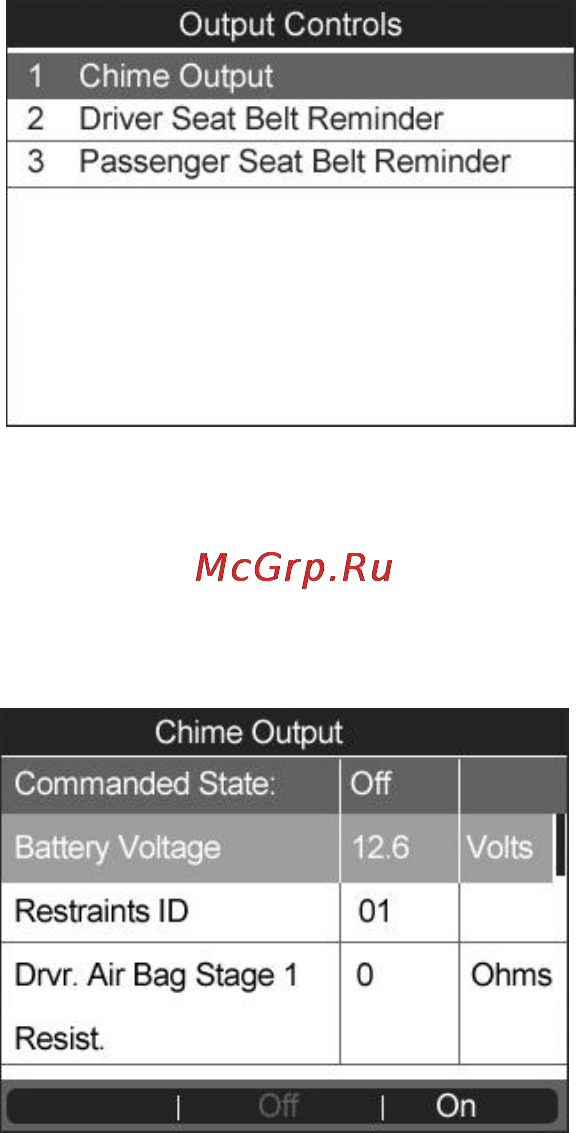

Figure 12.33

3) Press the corresponding FUNCTION BUTTON ‘ON’ or

“OFF” to check whether the Chime on the vehicle is turning on

or off.

Figure 12.34
