88

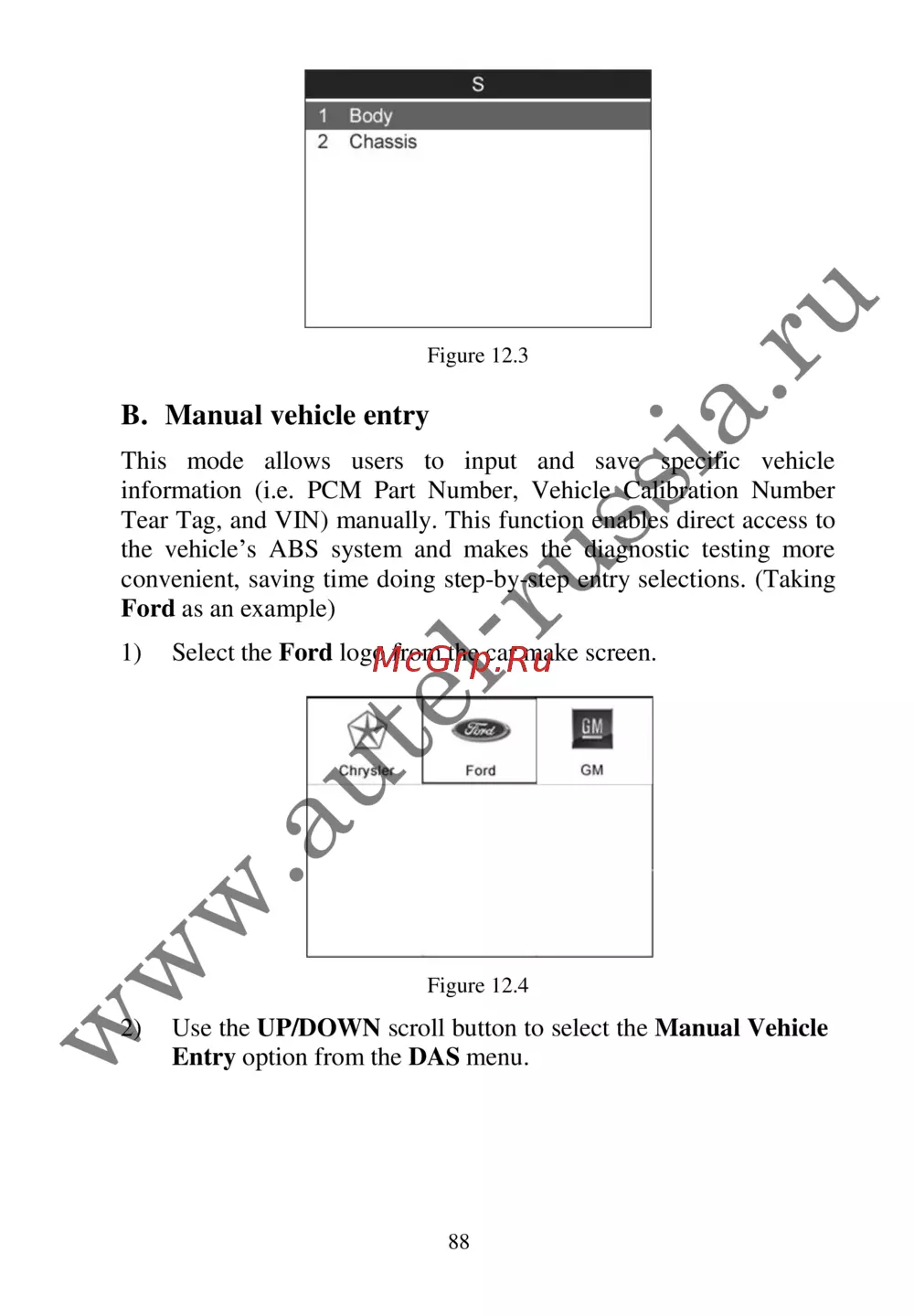

Figure 12.3
B. Manual vehicle entry
This mode allows users to input and save specific vehicle
information (i.e. PCM Part Number, Vehicle Calibration Number
Tear Tag, and VIN) manually. This function enables direct access to
the vehicle’s ABS system and makes the diagnostic testing more
convenient, saving time doing step-by-step entry selections. (Taking
Ford as an example)
1) Select the Ford logo from the car make screen.
Figure 12.4
2) Use the UP/DOWN scroll button to select the Manual Vehicle
Entry option from the DAS menu.
