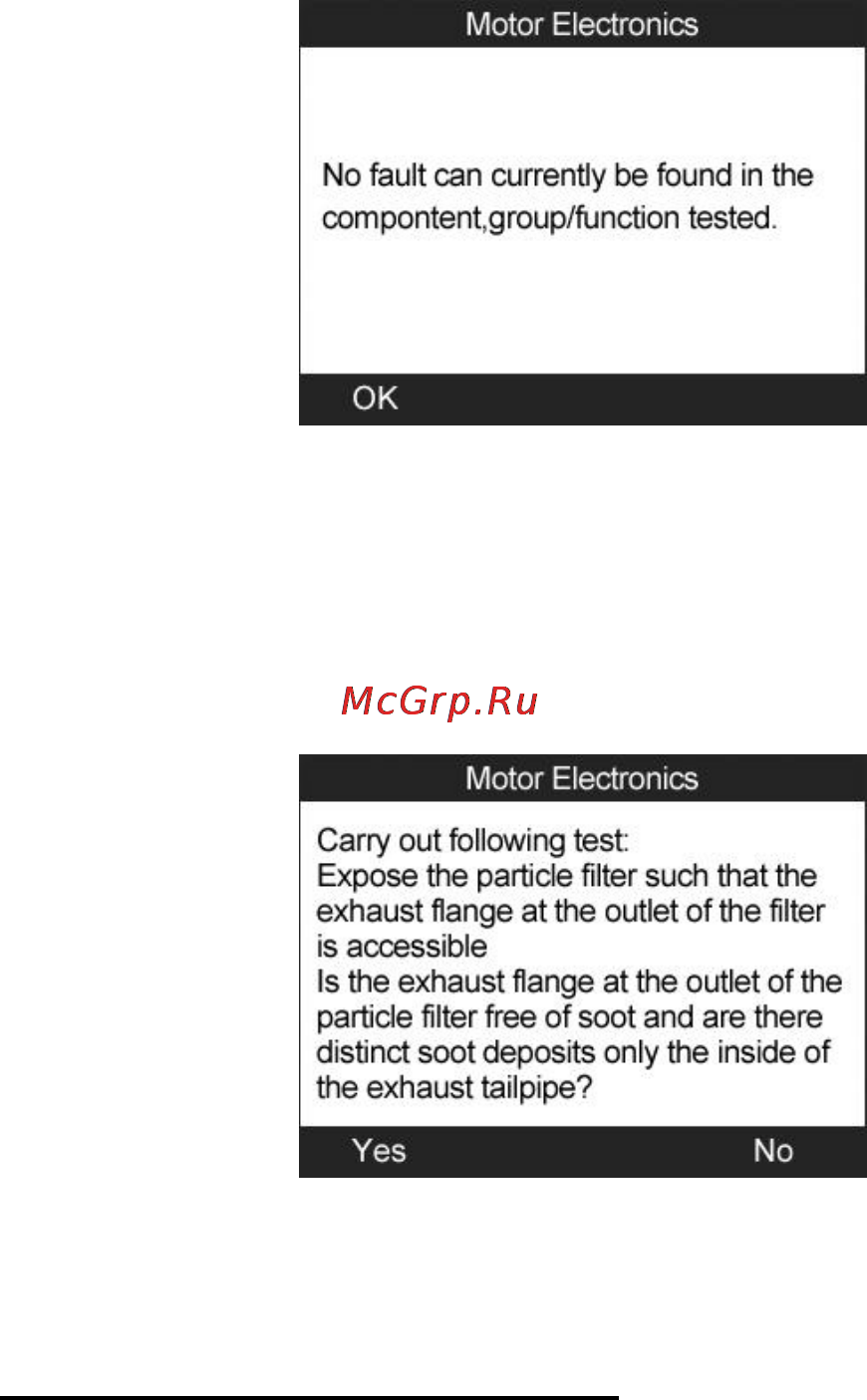

Figure 14.34

c) Or, select No if you visually find soot on the inside of the

exhaust tail pipes. The tool displays as below. Follow the

on-screen instructions to carry out particle filter visual

inspections. Then select the correct options according to the test

results.

Figure 14.35

d) Or, select Test Selection to return to previous menu.

【3】Function check of swirl flaps

a) From the particle filter test menu (Figure 14.29) use the

LEFT/RIGHT scroll button to select 【3】and press the OK

button.
