Autel MOT PRO [142/157] Www autel russia ru

141

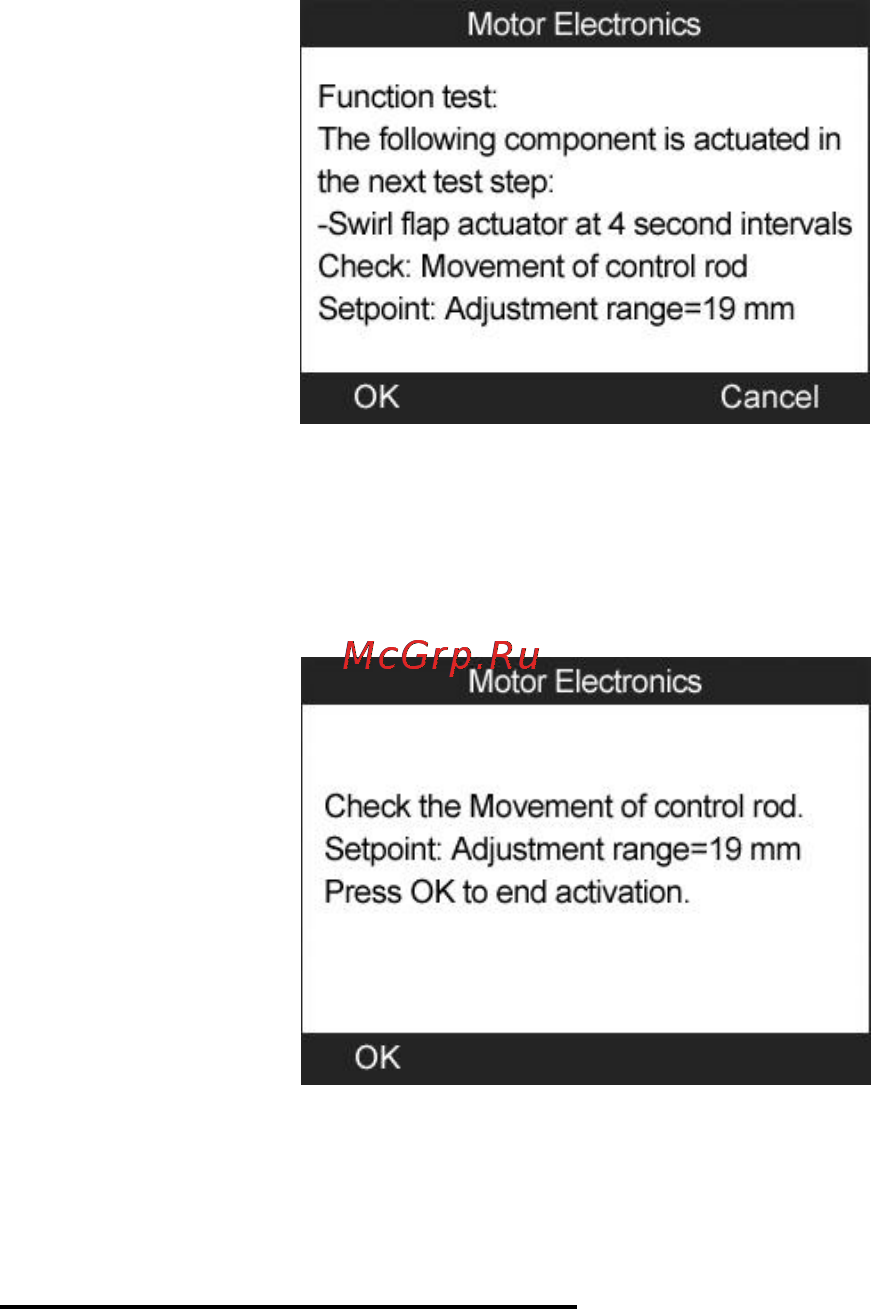

Figure 14.36

b) Select OK to activate swirl flaps and the tool displays as below.

(Figure 14.37) Press OK button to end the activation and exit.

Figure 14.37

c) Or, select Cancel to return to previous menu.

【4】Exhaust backpressure test

a) From the particle filter test menu (Figure 14.29) use the

LEFT/RIGHT scroll button to select 【4】 and press the OK

button.
