Руководство пользователя Страница: 145

Autel MOT PRO [145/157] Www autel russia ru

144

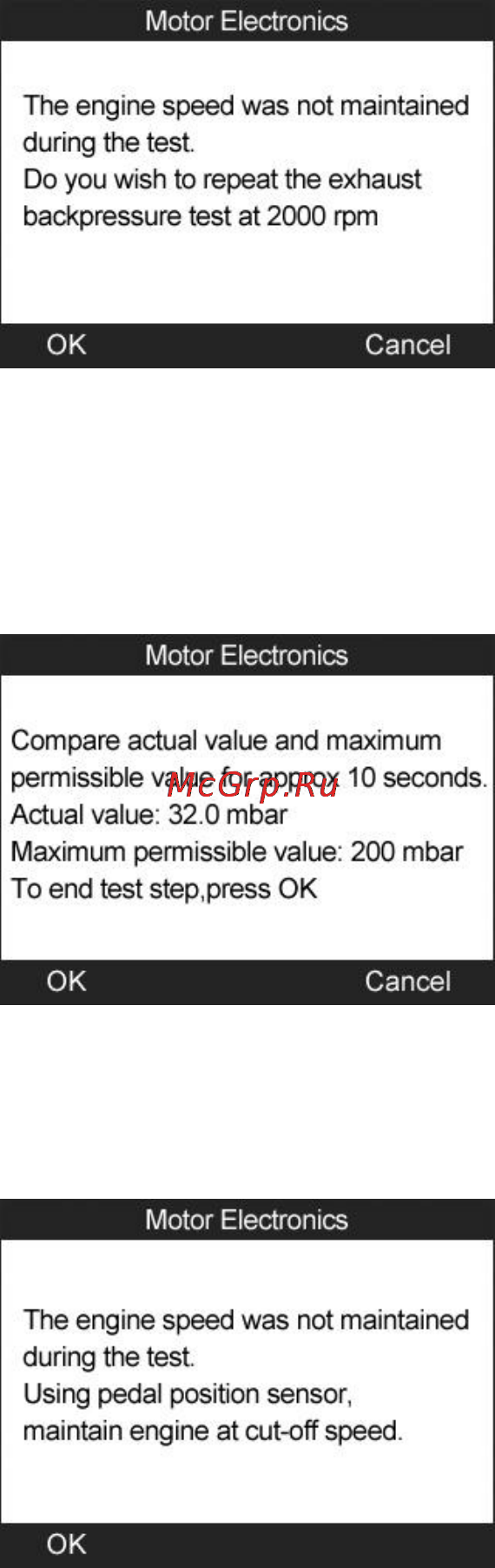

Figure 14.43

e) Check the exhaust backpressure with engine running at cut-off

speed. The tool will read off the actual backpressure value and

compare with the upper limit. (Figure 14.44). Select OK to end

the test or Cancel to return to previous menu.

Figure 14.44

 If the engine is not running at cut-off speed, the tool will display

a warning message. (Figure 14.45) Select OK to repeat the test.

Figure 14.45

www.autel-russia.ru
